Installing Cushion For Front Centre Backrest (Sports Bucket Seat)

1. Install cushion with cover.
   1. 1.1  Align cushion with cover -1-  on the seat backrest cover.

      Make sure that the seam of the cover for the middle backrest -Arrow A-  is continued on the backrest cover -Arrow B-  .

   2. 1.2  Press hook-and-loop fasteners -2-  firmly onto the seat shell -3-  (-Arrow-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

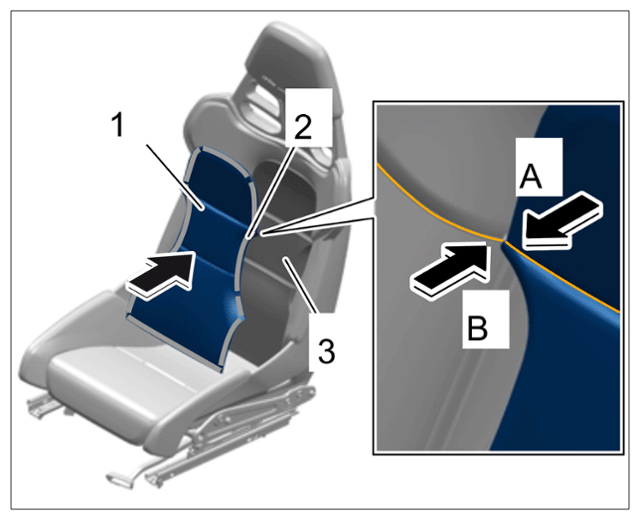

Fitting cushion for front centre backrest (sports bucket seat)
