Installing Padding For Front Middle Backrest (Air-Conditioned Comfort Seat)

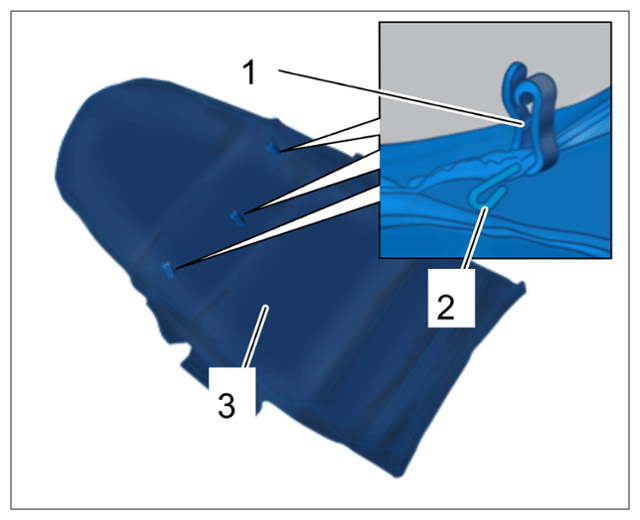

Check cushion clips -1- . If necessary, engage these in the integrated metal strut -2- of the cover for the front middle backrest -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting cushion clips

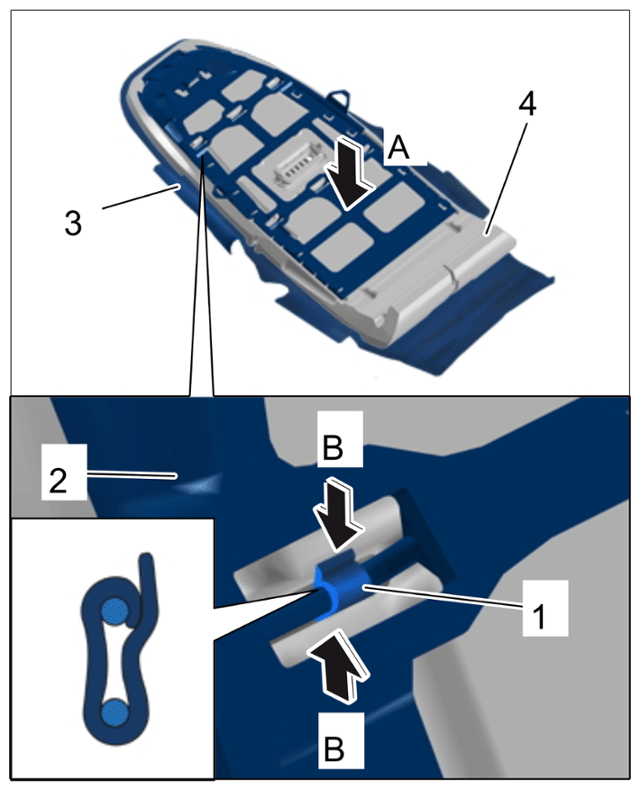

Fit cover -3- and padding -4- for front middle backrest and align with the contour of the plastic frame -2- (-arrow A- ).
Press cushion clips -1- through the cut-out in the padding -4- and into the plastic frame -2- (-arrows B- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing padding for front middle backrest

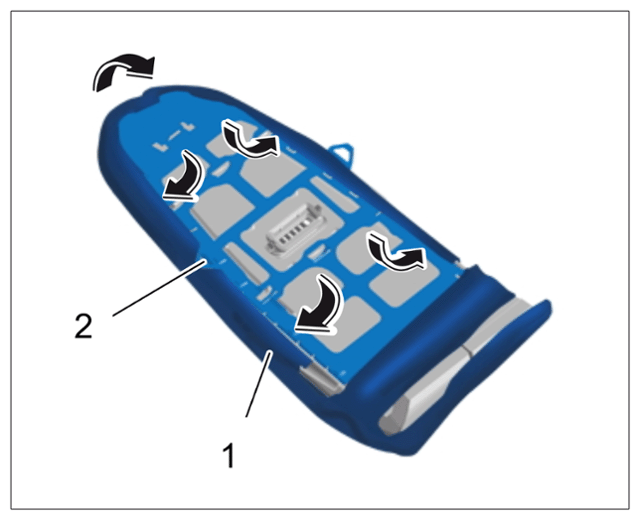

Engage cover for front middle backrest -1- in the plastic frame -2- all the way round -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engaging cover for front middle backrest
