Installing Padding For Front Backrest (Sports Seat Plus)

Information

Sealing surface of backrest frame must be clean and free of grease.

1. Apply adhesive to the marked areas -A to C-  of the front backrest padding.
   1. 1.1  Apply adhesive to the centre of the sealing surface -A-  for the backrest trim.
   2. 1.2  Apply adhesive on the inside along the padding -C-  as far as the step and back as far as the lower end -B-  of the padding.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

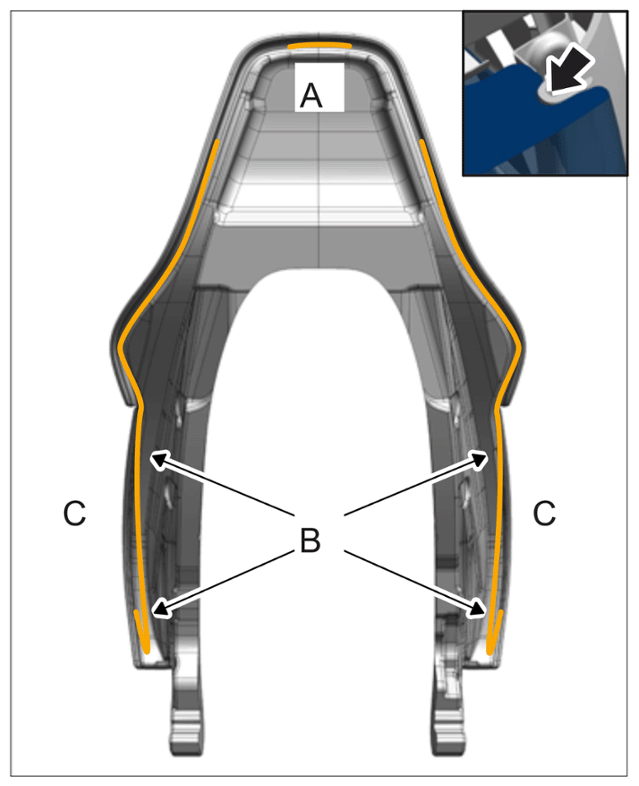

   Applying adhesive

2. Fit front backrest padding -2-  on the cushion carrier -3-  and align it.
3. Engage padding -1-  in the cushion carrier at the sides.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

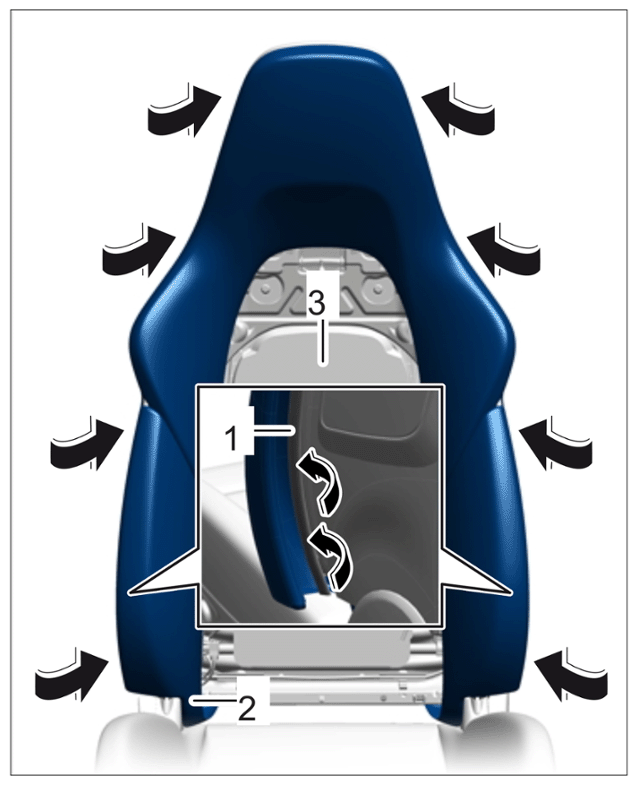

Installing padding for front backrest
