Subsequent Work
NOTE:
Risk of damage to cover if excessive heat is applied.
- Creases in cover
→ If creases have formed, only short partial warming with the hot-air gun is permissible.
→ The hot-air temperature of 50°C must always be observed.
- On vehicles with leather seats:
If creases have formed, partially heat the affected areas of the front seat cover with a hot-air gun and smooth out the cover using the following special tools:
- > 9747 - Wetting-off iron
- > 9747/1 - Knurling iron
- > 9747/2 - Bone burnisher
- > V.A.G 1416 - Hot-Air Blower
- Valid for removing and installing cover on front passenger's seat
on vehicles with equipment I-no. 899 - ISOFIX mounting points for child seat on passenger's seat.
Install ISOFIX bracket > Installing ISOFIX bracket .

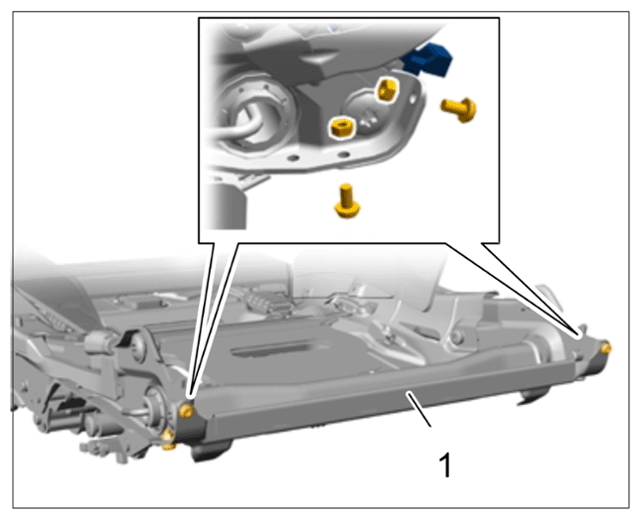

Installing ISOFIX bracket
- Install trim panel for seat.
- Remove front seat from assembly fixture.
> WM, 72013741 DISASSEMBLING AND ASSEMBLING FRONT SEAT (SPORTS BUCKET SEAT) ,
- Install front seat.
