Removing Front Seat Cover

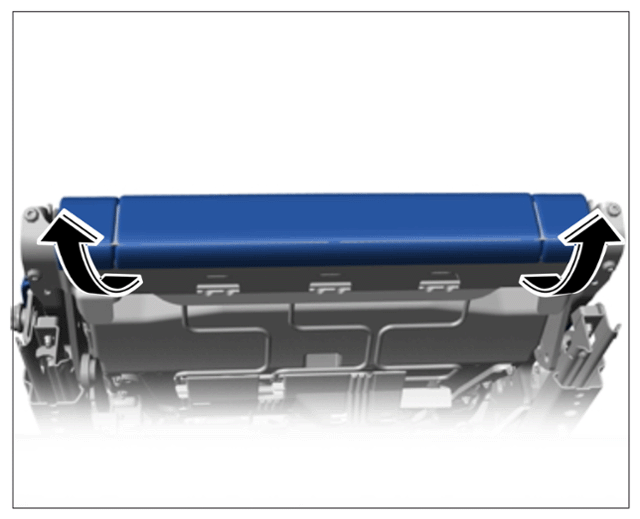

  1. Carefully press rear cover piping out of the seat frame using a suitable tool -arrows-  .
    G16224965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening rear cover piping

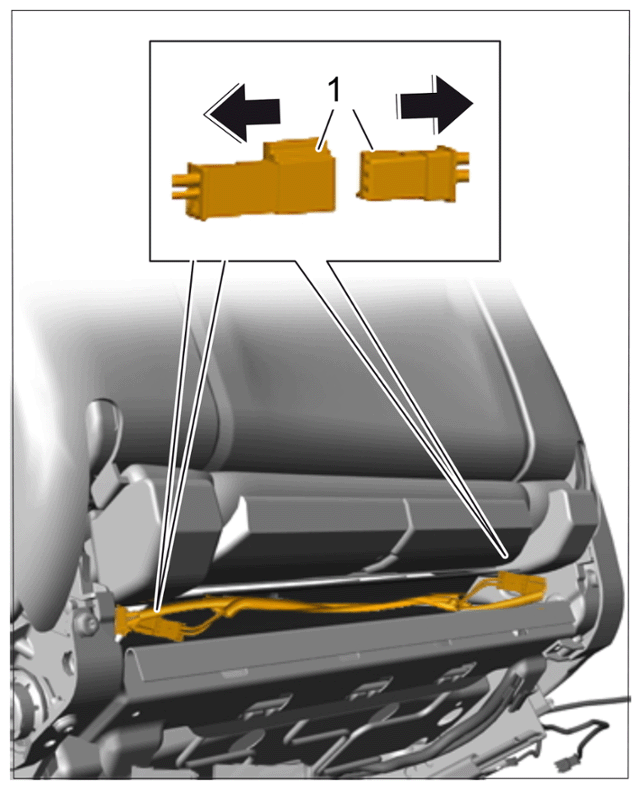

  2. Disconnect electric plug connections -1-  for seat heating -arrows-  .
    G16224966Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting electric plug connection for seat heating

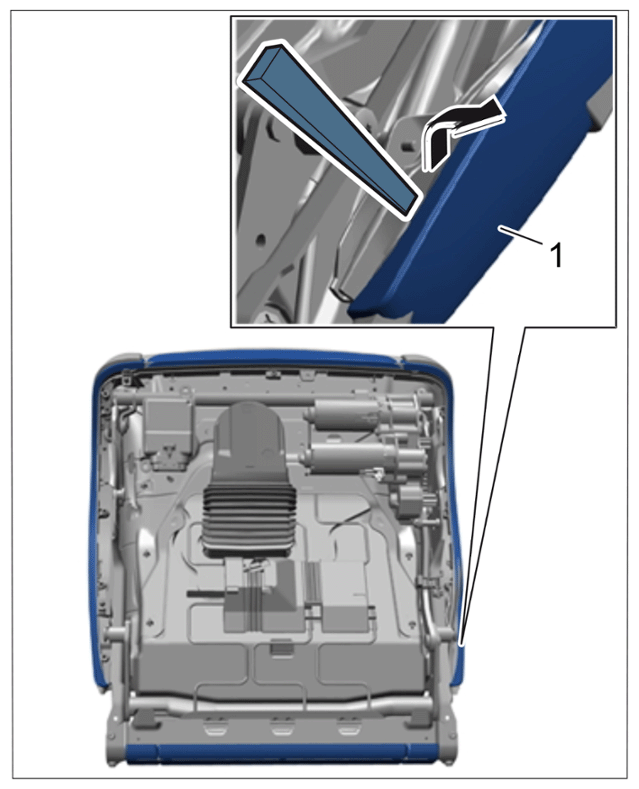

  3. Loosen cover piping -1-  all the way around -arrow-  .
    G16224967Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening cover piping all the way around

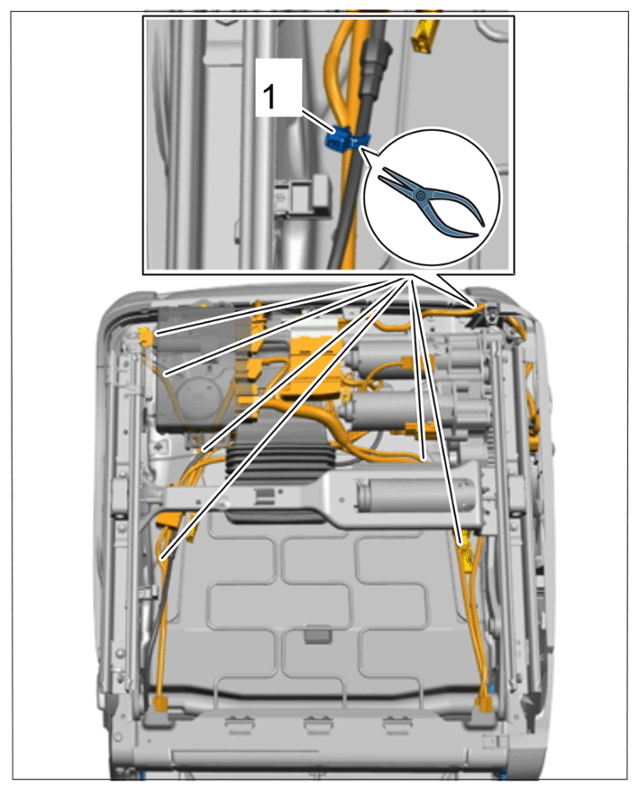

  4. Unclip clips -1-  using a suitable tool -arrow-  .
    G16224968Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening clips

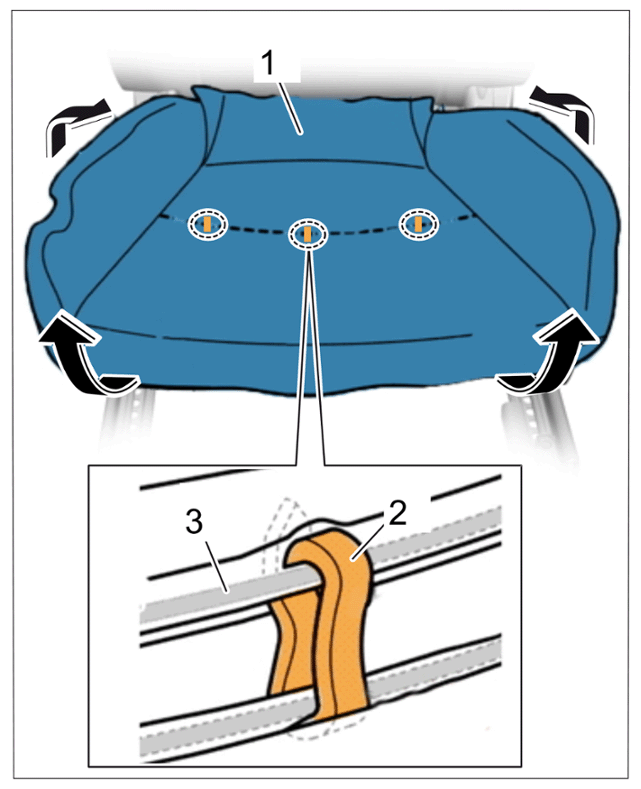

  5. Fold front seat cover -1-  up slightly -arrows-  and loosen cushion clips -2-  at the front from the integrated metal strut -3-  .
    G16224969Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Detaching cover at the front

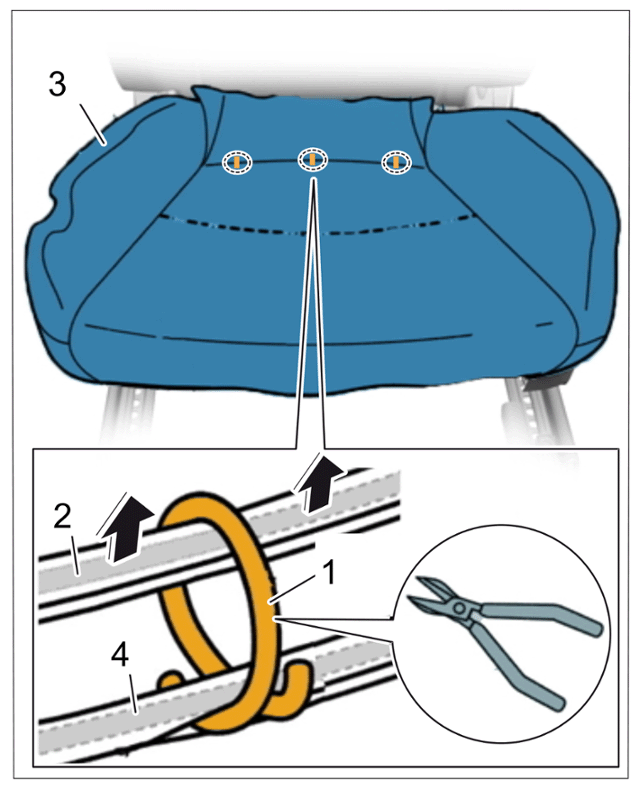

  6. Cut cushion clips -1-  at the rear on the integrated metal strut -2-  using side cutters.
  7. Remove front seat cover -3-  from padding -4-  (-arrows-  ).
    G16224970Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing rear cover
