Installing Padding For Front Seat (Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Padding for front seat (sports bucket seat)

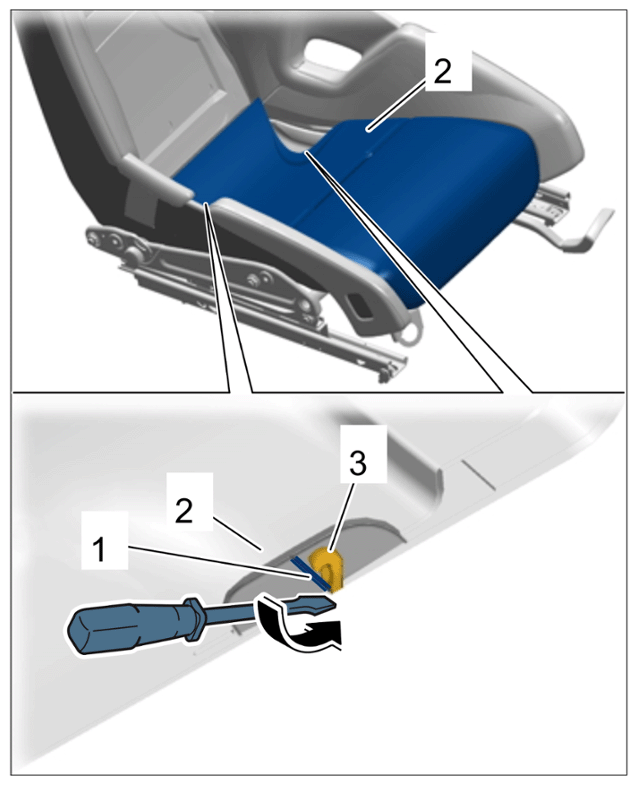

1. 2.1  Press padding -2-  aside in the rear area.
2. 2.2  Engage retaining wire -1-  on the padding -2-  into the retaining clip -3-  using a tool -Arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

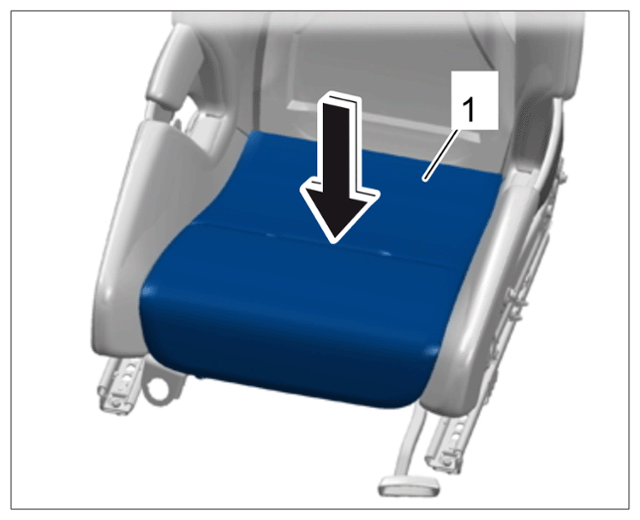

Padding hooks

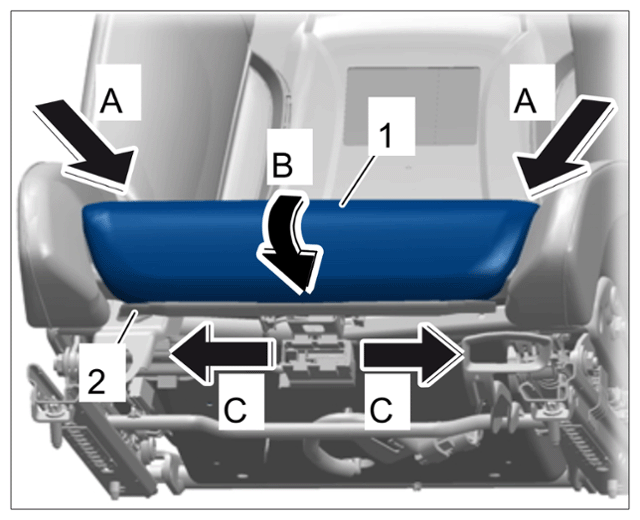

1. 3.1  Place padding -1-  at a front centered position in the seat shell.

   Check that there is a uniform gap at the side bolsters -Arrows A-  .

2. 3.2  Tension padding -1-  by pulling it downwards -Arrow B-  and engage piping strip -2-  in the middle.
3. 3.3  Engage piping strip -2-  evenly from the inside out -Arrows C-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

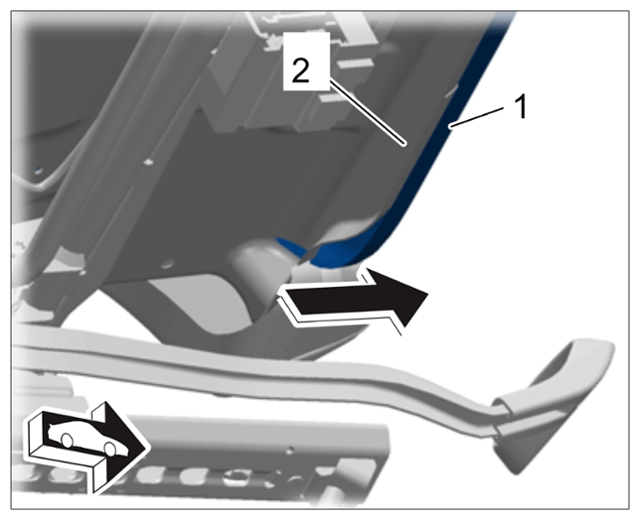

Front padding fastening

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front padding piping strip
