Installing Padding For Front Seat With Seat Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

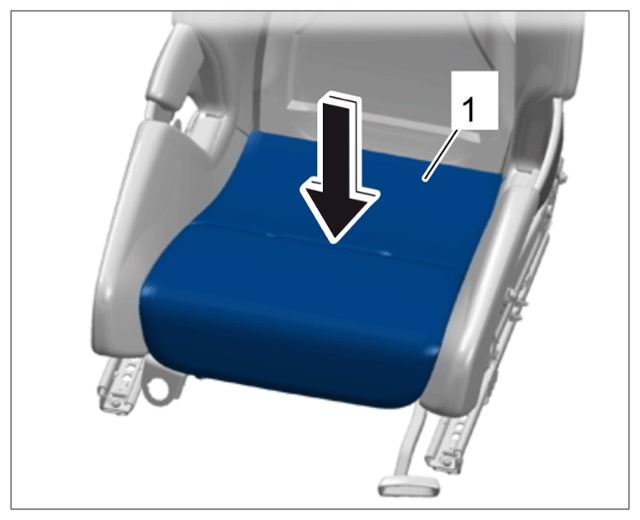

Padding for front seat with cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Padding for front seat with cover.

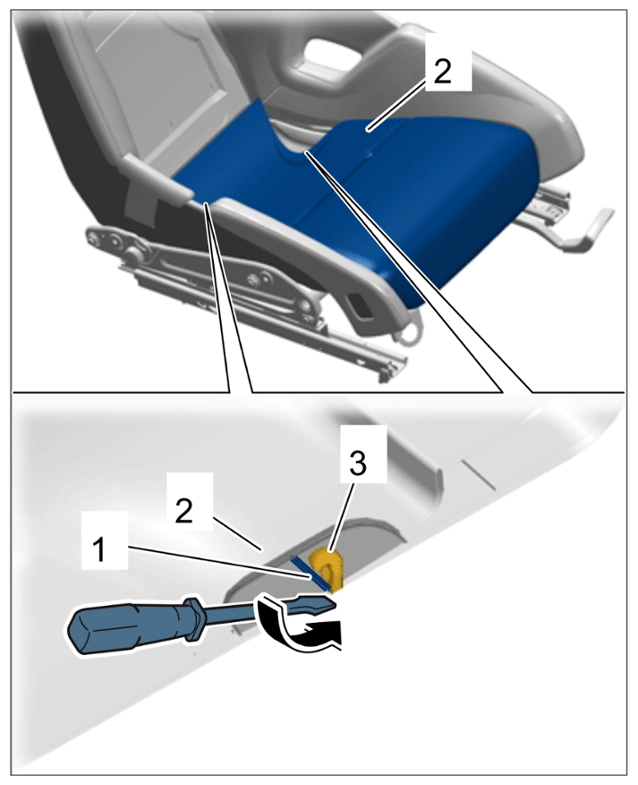

1. 2.1  Press padding for front seat (with cover) -2-  aside in the rear area.
2. 2.2  Engage retaining wire -1-  on the padding -2-  into the retaining clip -3-  using a tool -Arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Padding for front seat with cover front

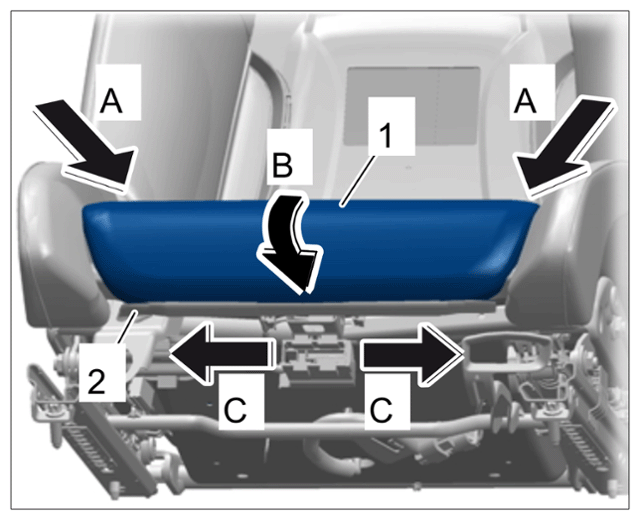

1. 3.1  Centre padding for front seat with cover at the -1-  front in the seat shell.

   Check that there is a uniform gap at the side bolsters. -Arrow A-

2. 3.2  Tension padding for front seat with cover -1-  by pulling it downwards -Arrow B-  and engage piping strip -2-  in the middle.

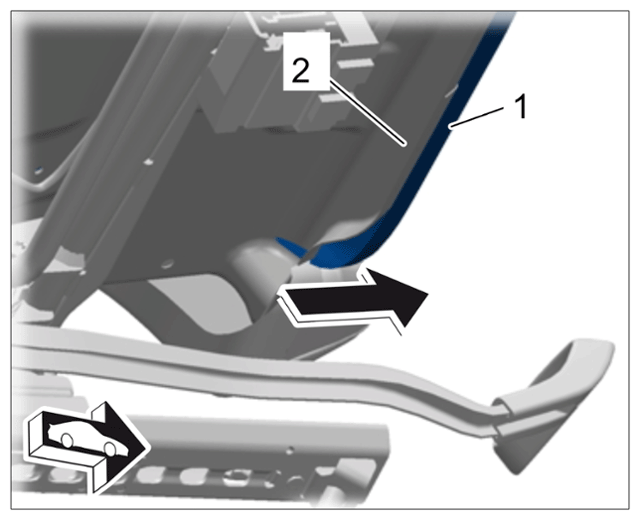

3. 3.3  Engage piping strip -2-  evenly from the inside out -Arrow C-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Padding for front seat with cover front
