Removing Padding For Front Seat

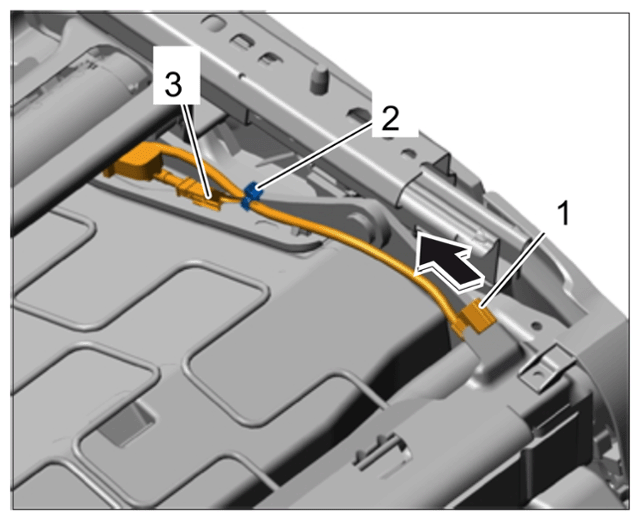

Only for vehicles with heated seats (I-no. 342):
Disconnect electric plug connection -3- for seat heating.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing wire harness on seat frame

Information

Do not trap or damage the wire harness when pulling it through.

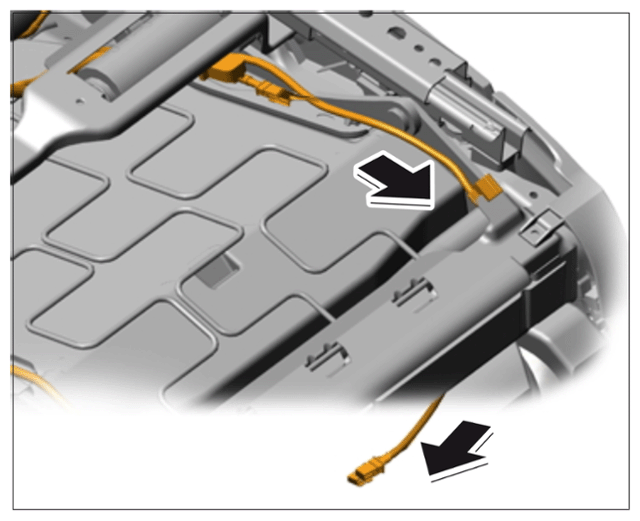

Only for vehicles with heated seats (I-no. 342):
Pull wire harness out through the seat frame -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling out wire harness

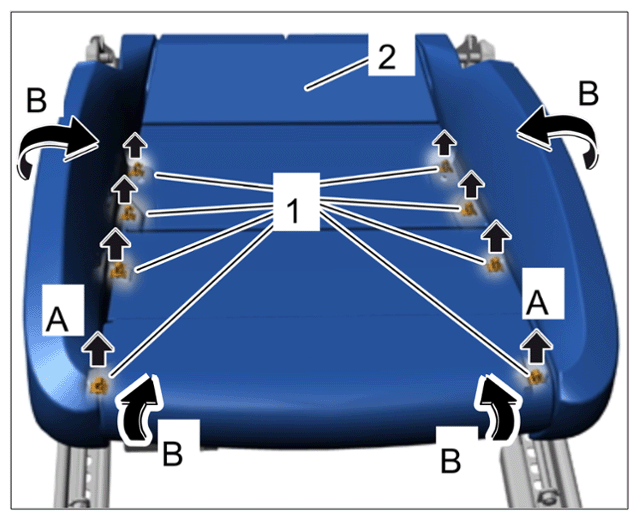

Unclip clips -1- on the underside of the front seat padding -2- (-arrows A- ).
Information

Padding is secured with adhesive - carefully loosen padding along the bonding points during removal.
Carefully detach front seat padding -2- from the seat frame -arrows B- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing padding

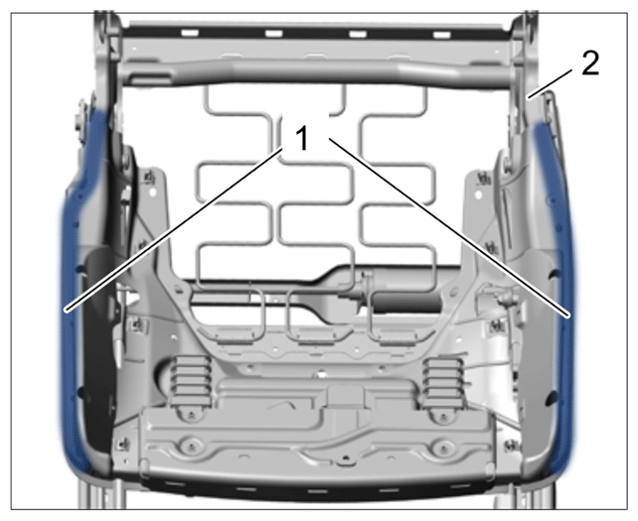

Remove residual adhesive -1- and clean sealing surface of seat frame -2- with cleaning agent.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing residual adhesive
