Removing Padding For Front Seat (Air-Conditioned Comfort Seat)

Information

Do not trap or damage the wire harness when pulling it through.

1. Expose wire harness for seat heating and feed it out.

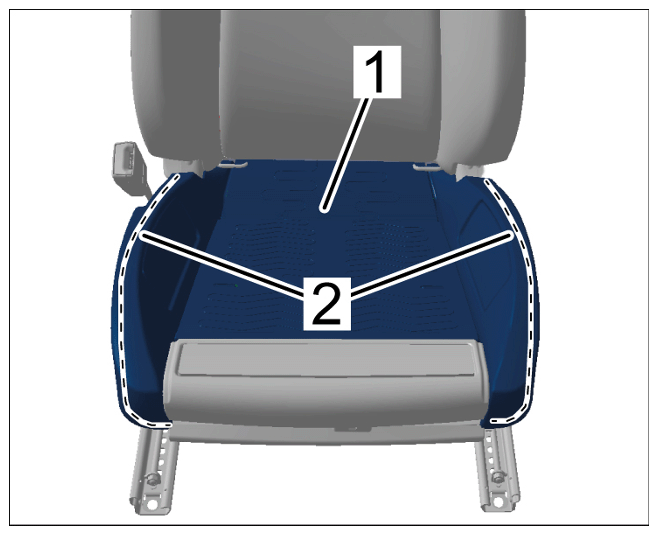

2. Unclip padding -1-  on the underside of the seat frame and detach it in the bonding area -2-  .
3. Fold padding -1-  up and guide air duct through the seat frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening padding

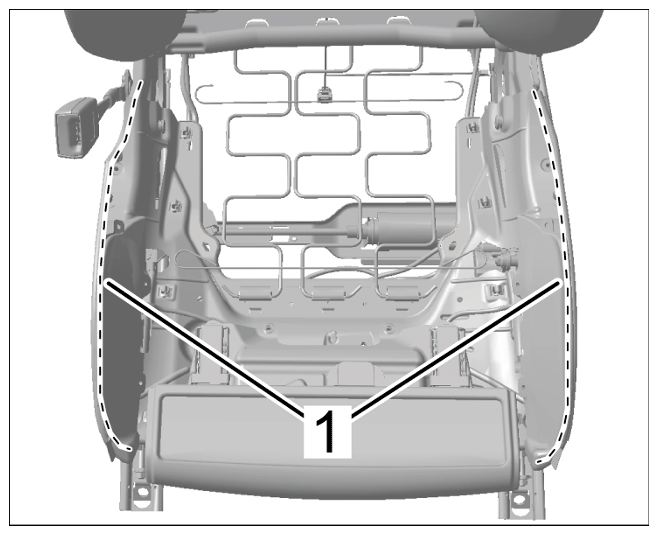

4. Remove residual adhesive -1-  and clean sealing surface of seat frame with cleaning agent.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing residual adhesive
