Installing Padding For Front Seat (Air-Conditioned Comfort Seat)

Information

The sealing surface of the seat frame must be clean and free of grease.

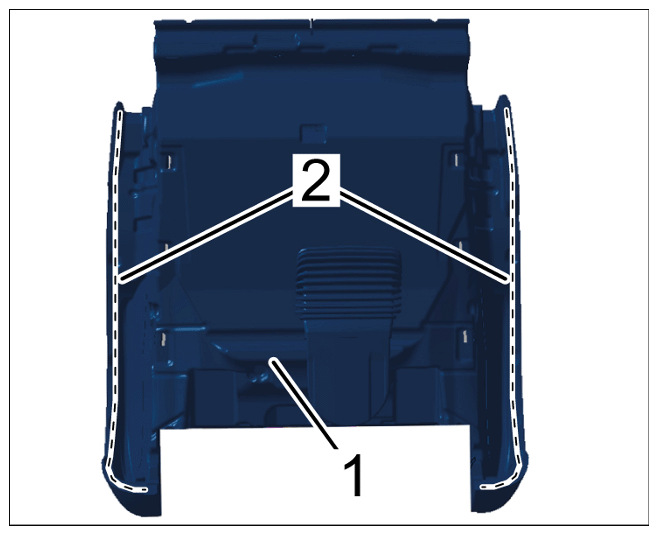

1. Apply adhesive -2-  to the marked area of the padding -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying adhesive

2. Guide air duct through the seat frame, align padding -1-  on the seat frame and fit it.
3. Press on padding at the sides and clip it into the underside of the seat frame.

   Information

   Do not trap or damage the wire harness when pulling it through.

4. Guide in and secure wire harness for seat heating.
