Removing And Installing Suction Fan For Seat Surface

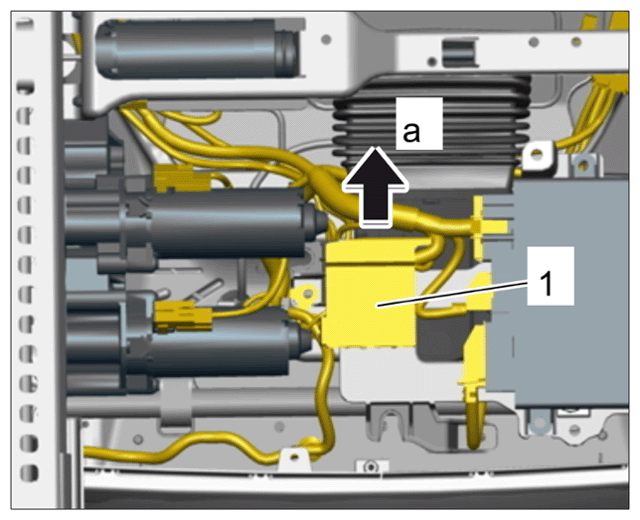

Press central connector -1- for electric seat adjustment out of the holder -arrow a- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting central connector

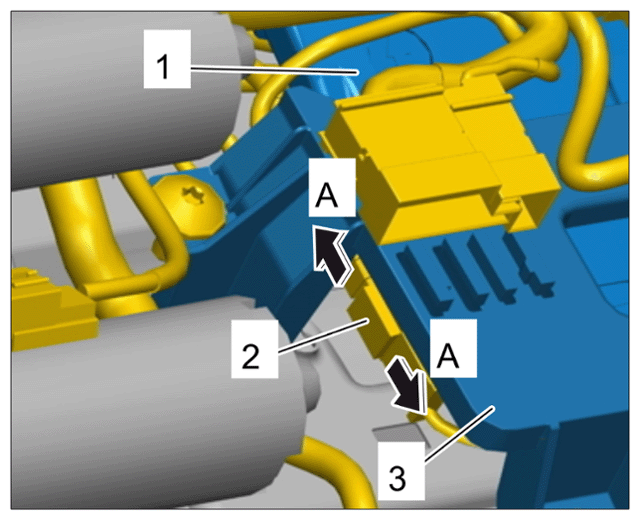

Pull electric plug connection -2- off the holder -3- (-arrows A- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off electric plug connection

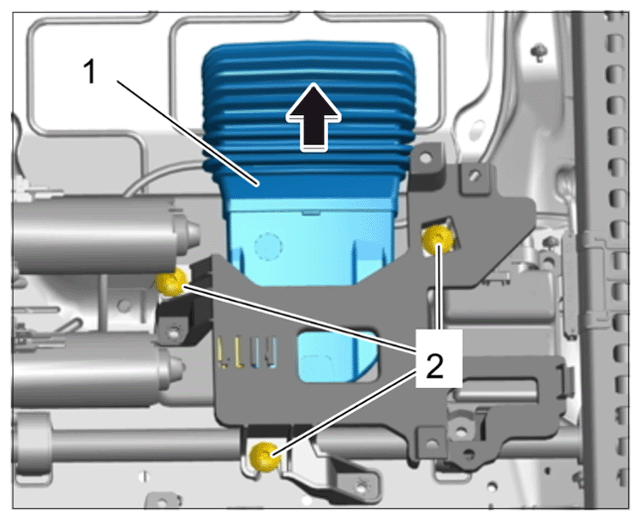

Unscrew screws -2- on the suction fan -1- and remove suction fan -1- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting suction fan
Remove suction fan.

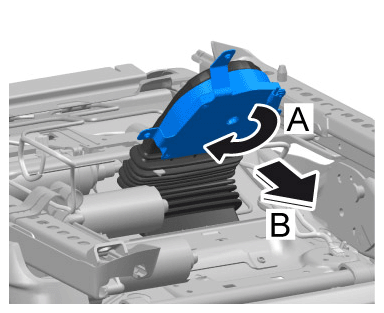

1. 4.1 Counter at the air duct and unscrew suction fan in a clockwise direction -arrow A- .
2. 4.2 Remove suction fan -arrow B- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing suction fan
Installation is performed in reverse order.
