Removing And Installing Front Seat Extension

Information

During installation, make sure that the retaining bracket -1-  is positioned correctly.

The retaining bracket -1-  is exposed for illustrative purposes.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

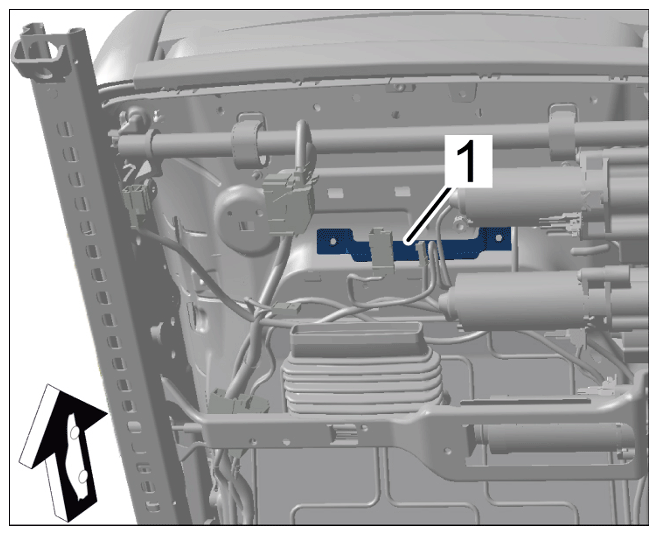

Retaining bracket

Information

Micro-self-locking or self-tapping screws must not be modified, greased or loosened and then screwed in again.

1. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

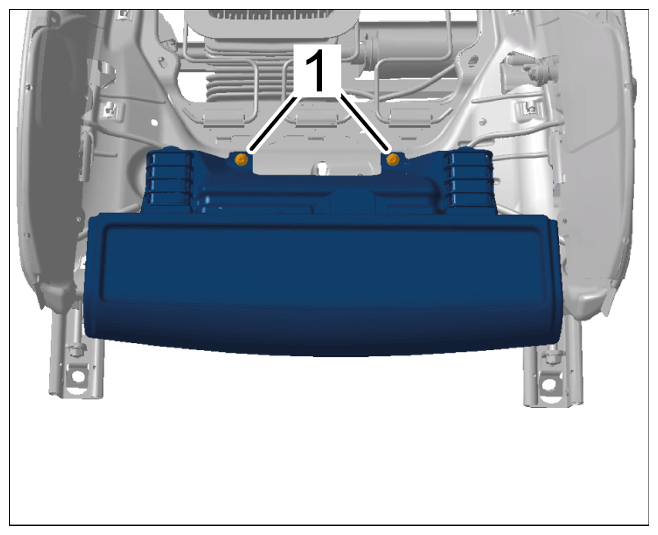

   Unscrewing upper screws

2. Unscrew and remove screws -2-  .
3. Disconnect electric plug connection and remove seat extension -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

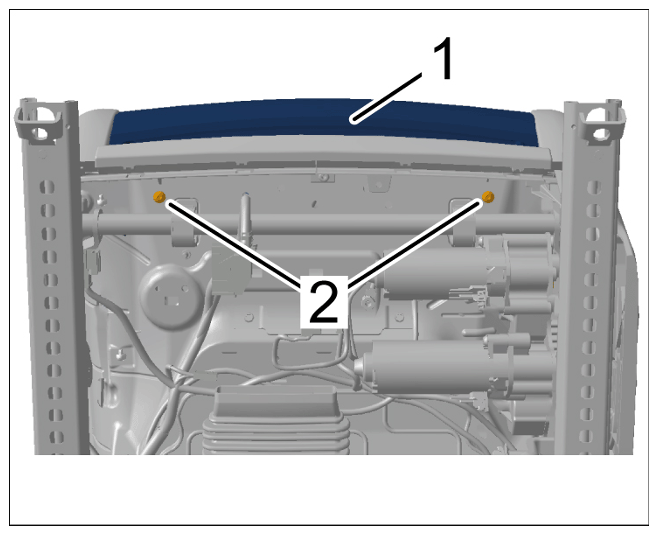

   Removing seat extension

4. Installation is performed in reverse order. Pay particular attention to the following:

   Replace upper seat-surface extension screws.
