Removing Side Cushion (Sports Bucket Seat)

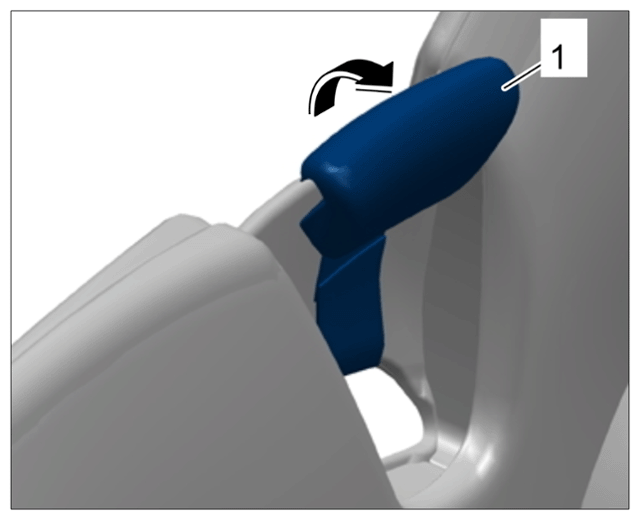

1. Unclip cushion -1-  from the seat shell -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cushion removal

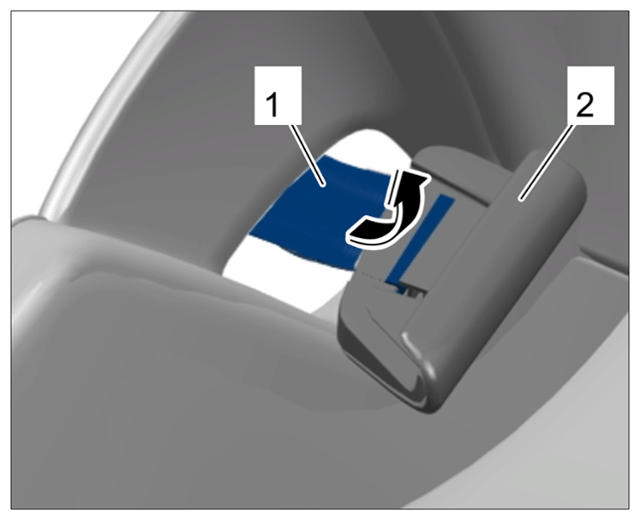

2. Disengage retaining strap -1-  from cushion -2-Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cushion retaining strap

3. Remove retaining strap.

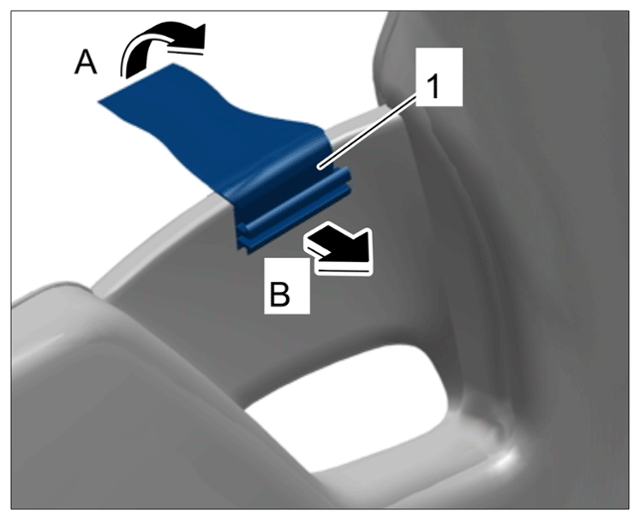

   1. 3.1  Guide out retaining strap -Arrow A-  .
   2. 3.2  Loosen bonded joint at the retaining clip -1-  and remove it -Arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cushion retaining strap removal

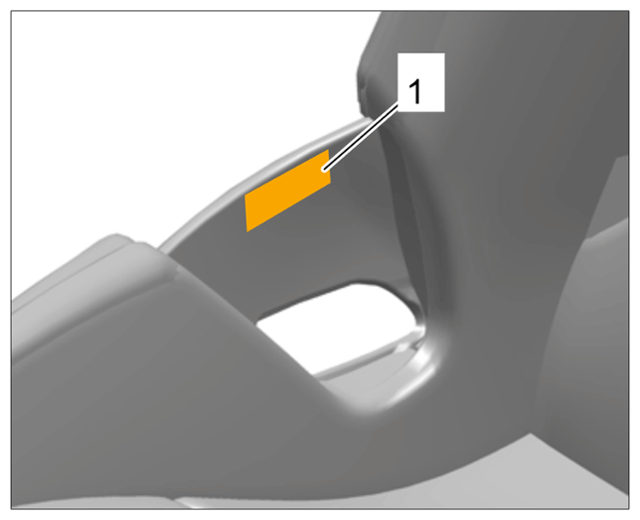

4. Remove adhesive residue and clean bonding surface -1-  with isopropanol.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cushion bonding surface
