Installing Side Cushion (Sports Bucket Seat)

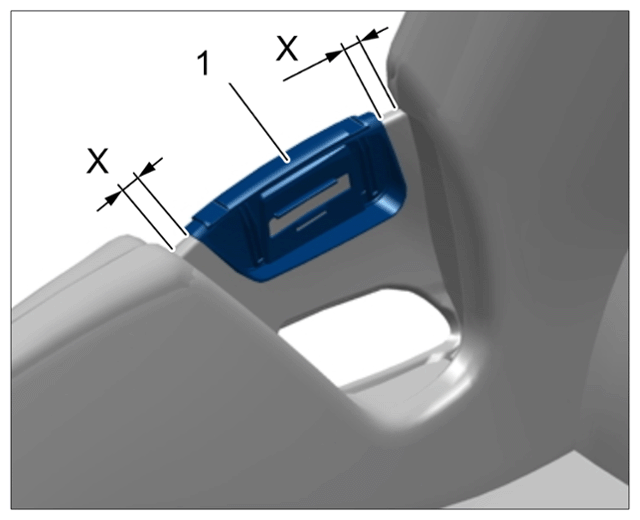

Position the template -1- on the seat shell.
Make sure that it is at equal distance from the side bolsters.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cushion template position

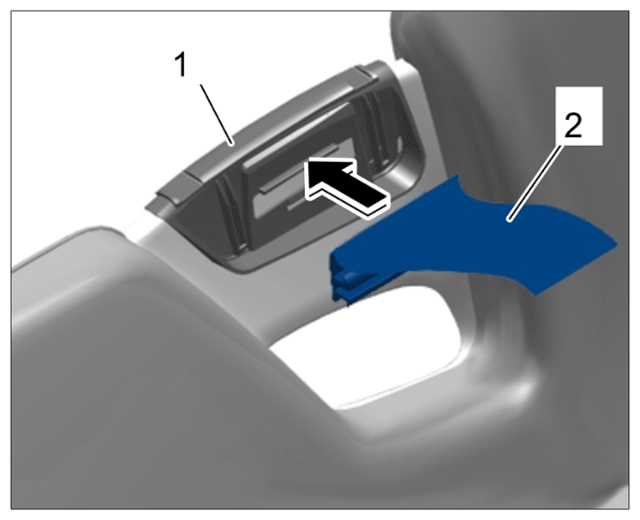

Position retaining clip with retaining strap -2- through the template -1- on the seat shell -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cushion retaining clip

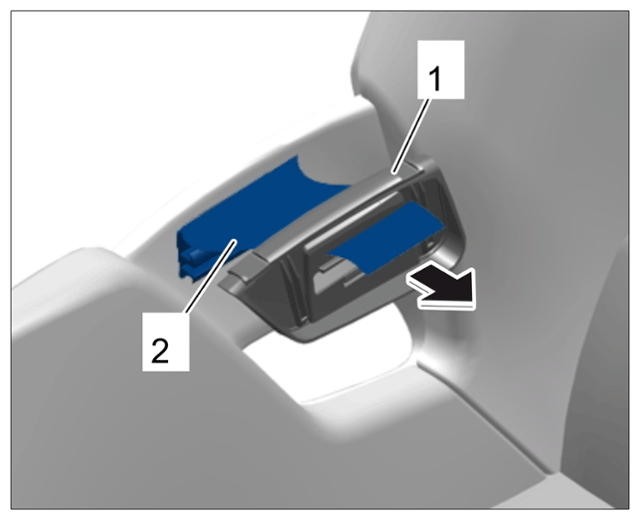

Remove template -1- from the seat shell -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cushion template

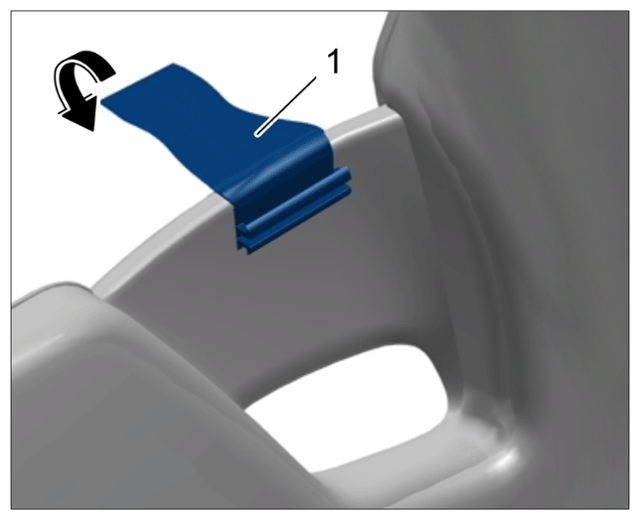

Guide retaining strap -1- around the seat shell -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strap preparation

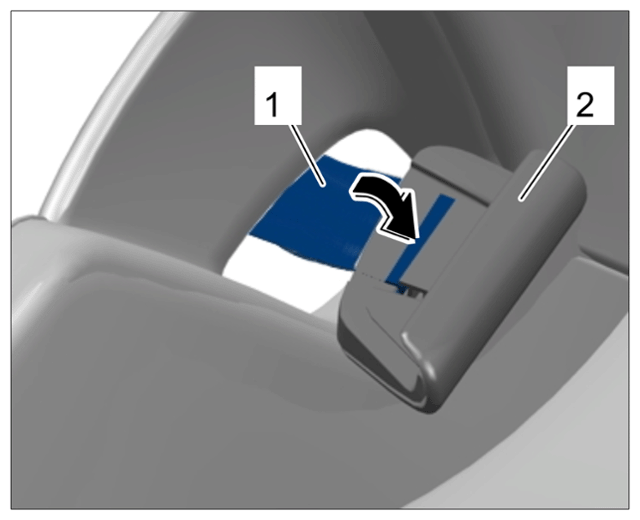

Engage the retaining strap -1- in the cushion -2-Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting retaining strap
Install retaining strap.

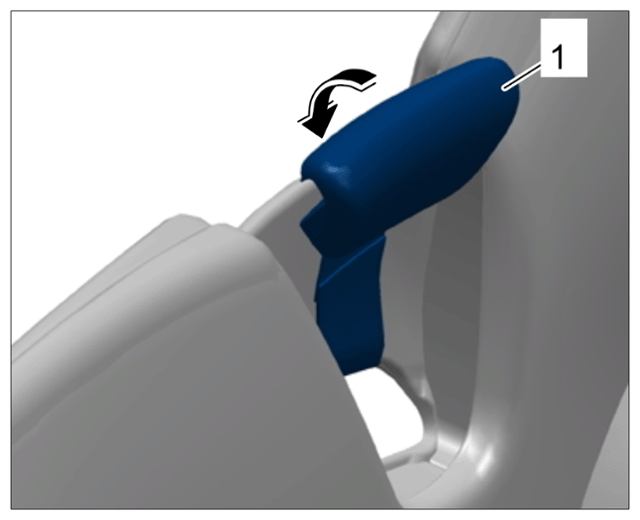

1. 6.1 Install cushion -1- over the seat shell -Arrow- and clip it into the retaining clip.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting cushion
