Removing Front Seat Frame (Sports Bucket Seat)

1. Set front seat -1-  down on a cushioned surface.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front seat frame (sports bucket seat)

2. Disconnect electric lines.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

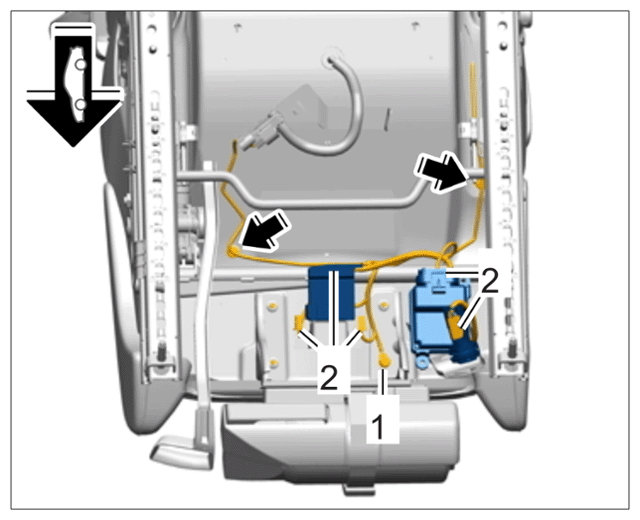

   Line plug connections

   1. 2.1  Unscrew nut -1-  .
   2. 2.2  Unplug plug connections -2-  and disconnect them from the line bracket.
   3. 2.3  Unclip line bracket -Arrow-  .
3. Remove power seat controller.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

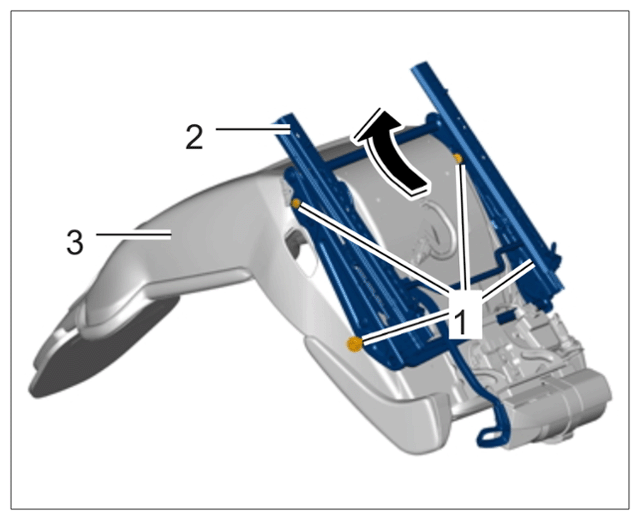

Seat frame

1. 3.1  Unscrew screws -1-  .
2. 3.2  Remove seat frame -2-  from the seat shell -3-  (-Arrow-  ).
