Removing And Installing Front Seat
- Risk of damage to lines and hoses
- Malfunction and fault memory entry on control unit
→ Avoid small bending when routing lines.
→ File down edges and burrs in the routing area or mask them with adhesive tape.
→ Maintain a sufficient distance from components exposed to high temperatures while driving.
- Danger of injury
- Loss of torque
→ Always use new screws or nuts following removal.
→ Comply with instructions for repairs.
→ Observe specified tightening torques.
→ Carry out a visual inspection of parts used.
Information
Do not trap or damage electric lines.
- Move front seat as far back as it will go.

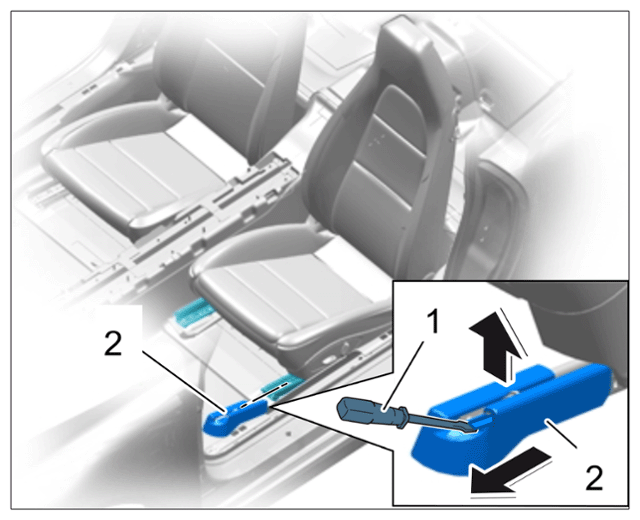

- Insert a suitable tool -1- under the locking lugs and press upwards slightly.
- Remove seat rail covers -2-
from the left and right seat rails by pulling them forward.
Removing seat rail cover
Information
Micro-self-locking or self-tapping screws must not be modified, greased or loosened and then screwed in again.

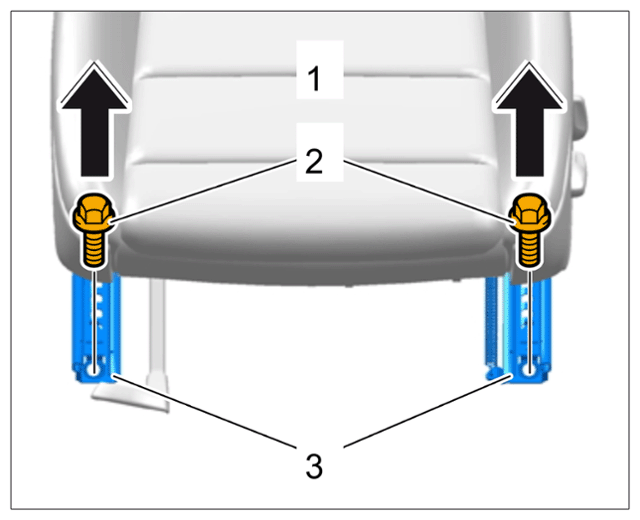

- Unscrew and remove front screws -2-
at the left and right.
Loosening front seat at the front
- Move front seat as far forward as it will go.
Information
Micro-self-locking or self-tapping screws must not be modified, greased or loosened and then screwed in again.

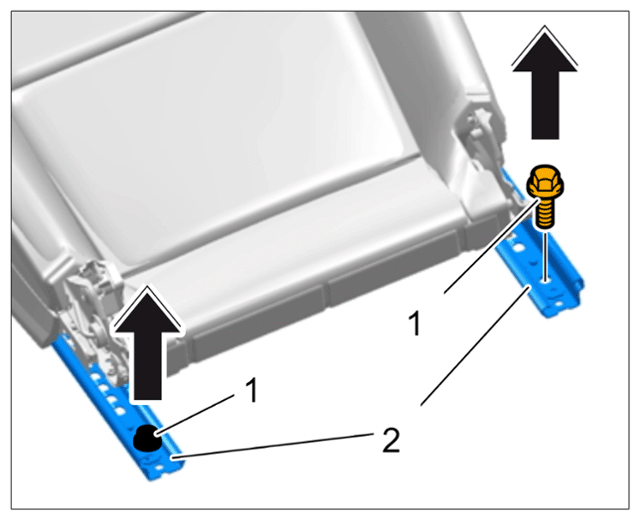

- Unscrew and remove rear screws -1-
at the left and right.
Loosening front seat at the rear
- Disconnect ground line for battery.
- Tilt the front seat back.

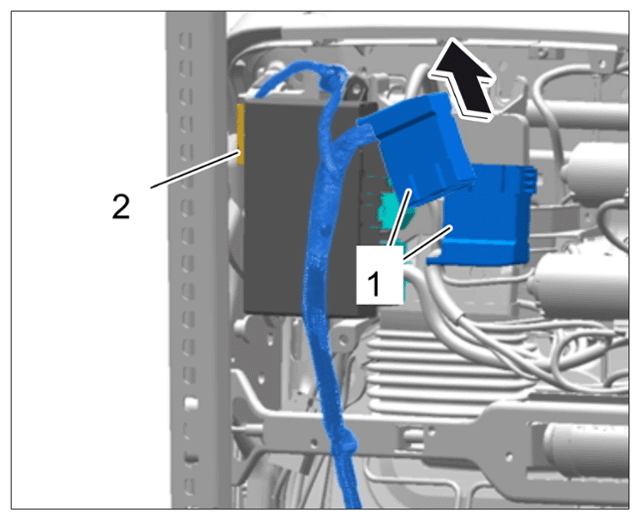

- Disconnect electric central connector -1-
.
Information
The number of electric plug connections will vary depending on equipment.
- Disconnect electric plug connection -2-
.
Disconnecting central connector

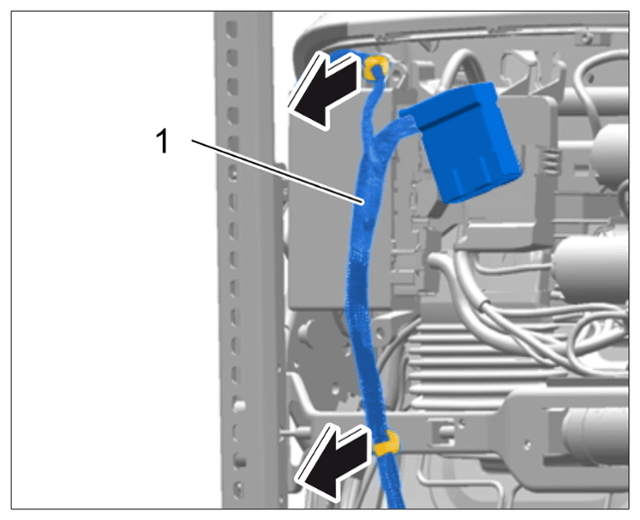

- Unclip electric wire harness -1-
.
Disconnecting electric wire harness
Information
The help of another person is required.
- Remove front seat from the vehicle.
Information
The routing of the electric wire harness for the control unit must be checked before installing the seat.
- Installation is performed in reverse order. Pay particular attention to the following:
Tightening torque for screw securing front seat to body: > Tightening torque 50 N.m (37 ft lb.)
Subsequent work
Subsequent work
Information
On vehicles with memory seat adjustment.
- Perform standardization.
