Removing Front Roof Console

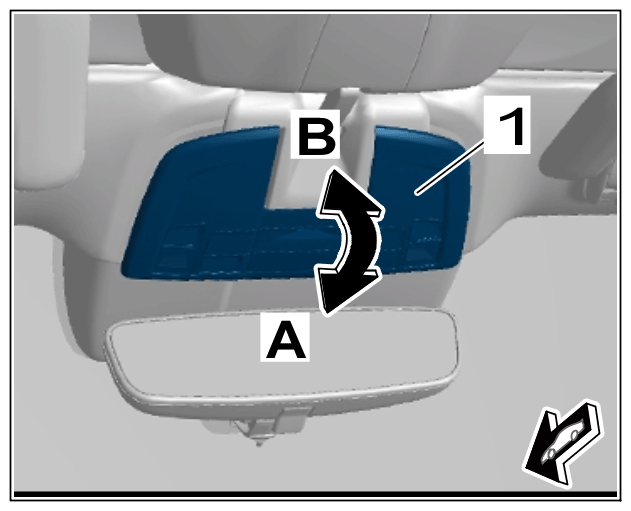

  1. Unclip front roof console -1-  and carefully swivel it down in -direction of arrow A-  .
    G16224499Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front roof console

  2. Remove front roof console -1-  .

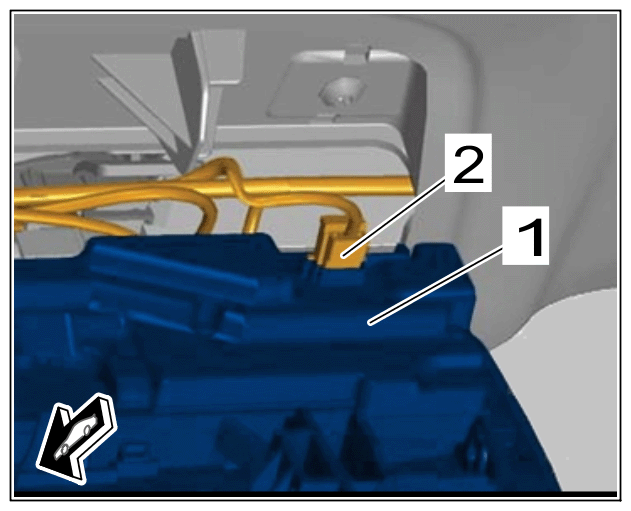

    1. 2.1  Release and disconnect electric plug connection -2-  .
    2. 2.2  Remove front roof console -1-  .
    G16224500Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for roof console
