Installing Front Roof Console

1. Install front roof console -1-  .
   1. 1.1  Position front roof console -1-  .
   2. 1.2  Connect and lock electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

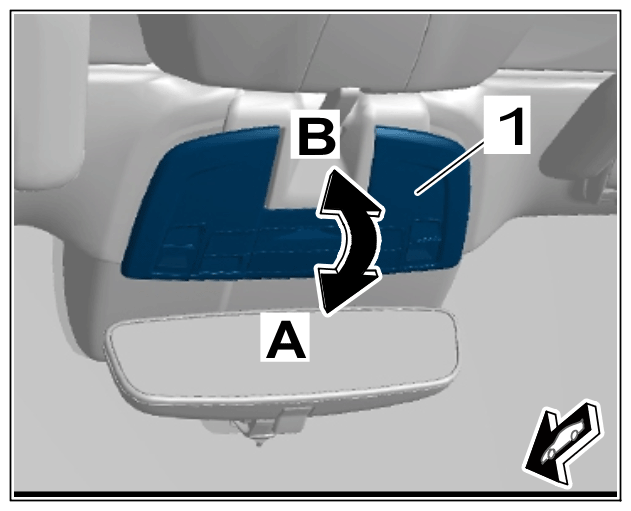

   Front roof console

2. Clip in front roof console -1-  in -direction of arrow B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

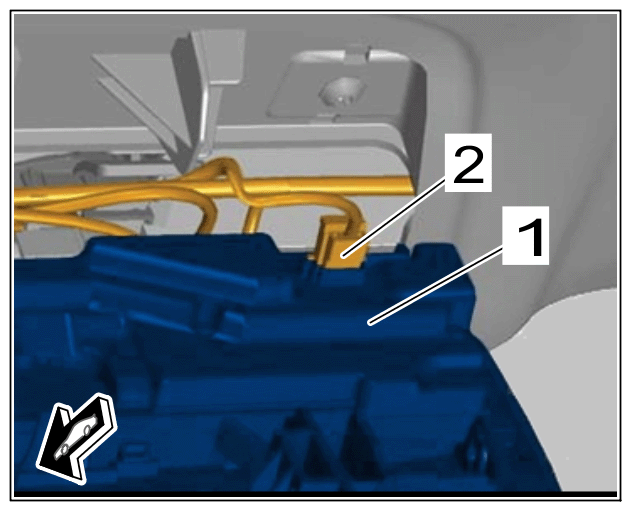

Electric plug connection for roof console
