Removing And Installing Side Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

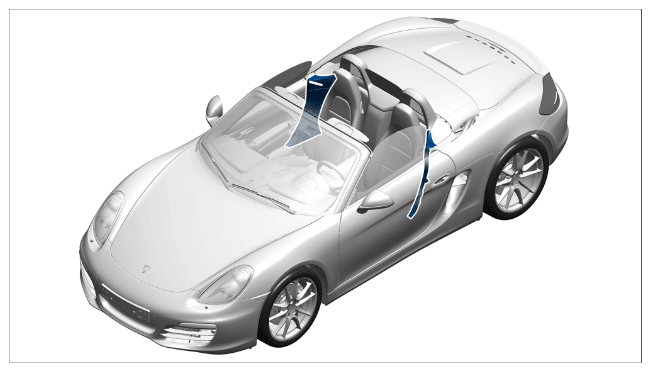

Installation position of side trim panel

1. Loosen cover on belt strap guide -1-  using a plastic wedge -2-  (-arrows A-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing belt strap guide cover

2. Guide cover for belt strap guide -1-  out of the locks -arrows B-  and set it aside with the three-point belt.

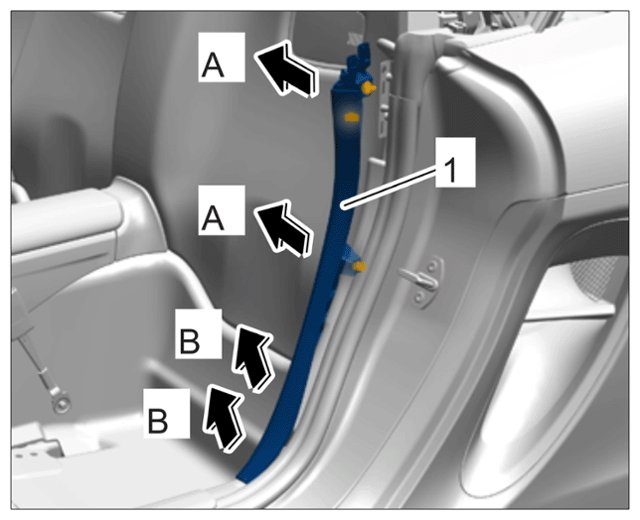

3. Unclip side trim panel -1-  from the locks -arrows A-  and pull it out of the guides -arrows B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing side trim panel

4. Installation is performed in reverse order.
