Removing And Installing Trim Panel Under Dashboard

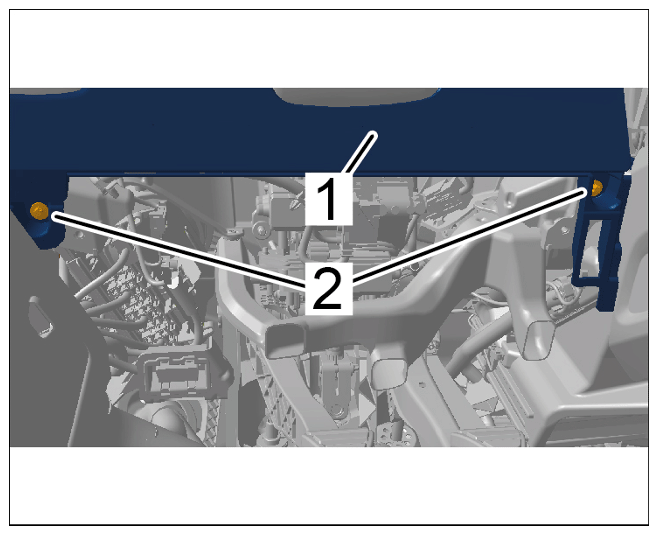

Unscrew and remove screws -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

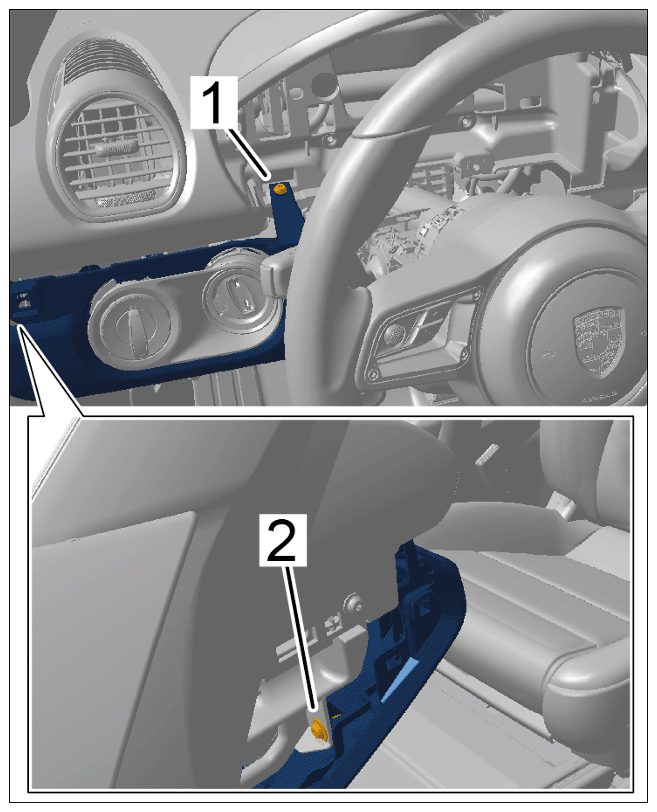

Loosening trim panel under dashboard at the top
Unscrew screws -2- , unclip trim panel under dashboard -1- by pulling it to the rear and out of the guide and set it down in the footwell.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening trim panel under dashboard at the bottom

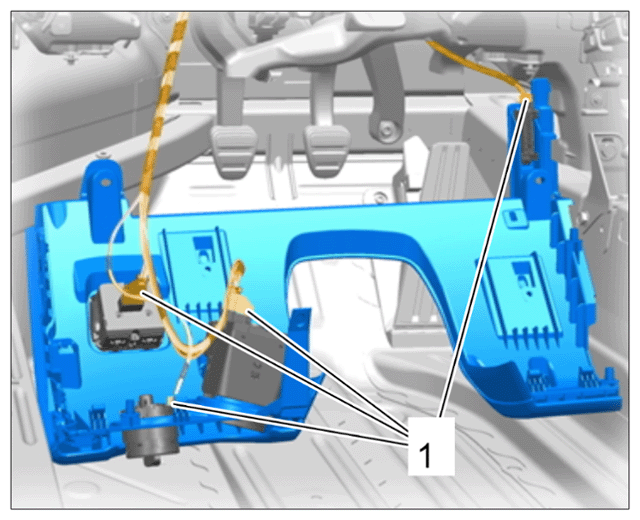

Disconnect electric plug connections -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect the electric plug connections
Remove trim panel.
Installation is performed in reverse order.
