Removing Trim Panel For Convertible Top Compartment/Engine Compartment Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

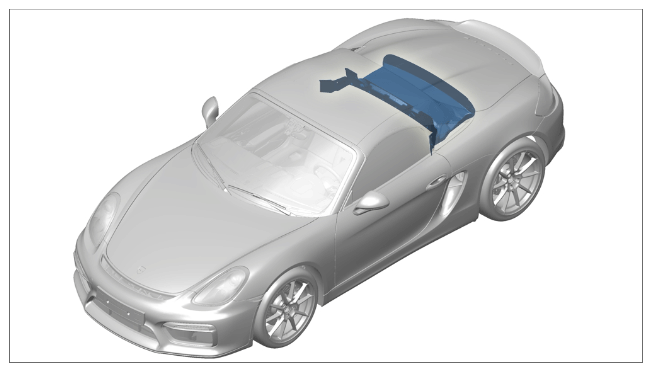

Installation position of convertible top compartment/engine compartment lid

1. Move convertible top into a partly opened position.
2. Loosen fixing clips -1-  on rear convertible top covering.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

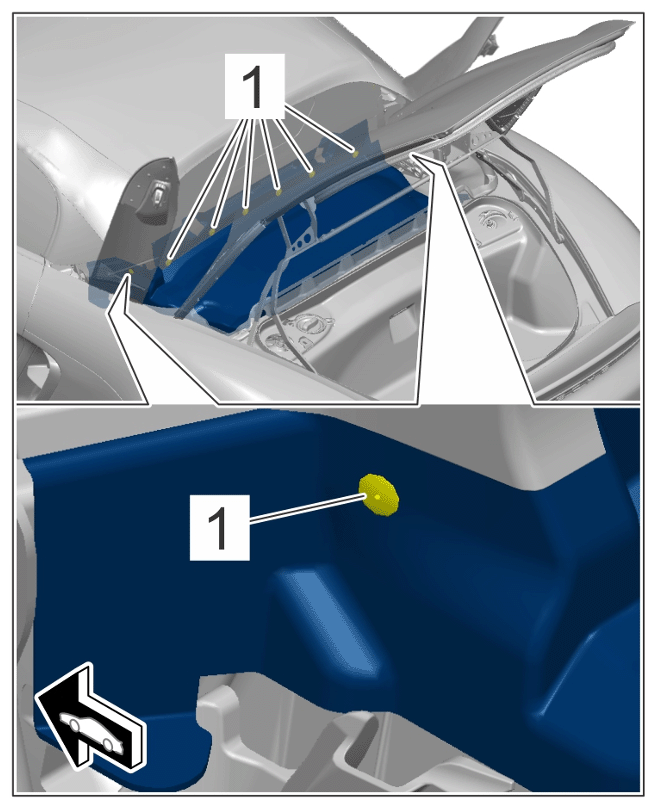

   Convertible top covering

3. Press trim panel for convertible top compartment/engine compartment lid down in the rear area (arrows) -A-  and pull it forward.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

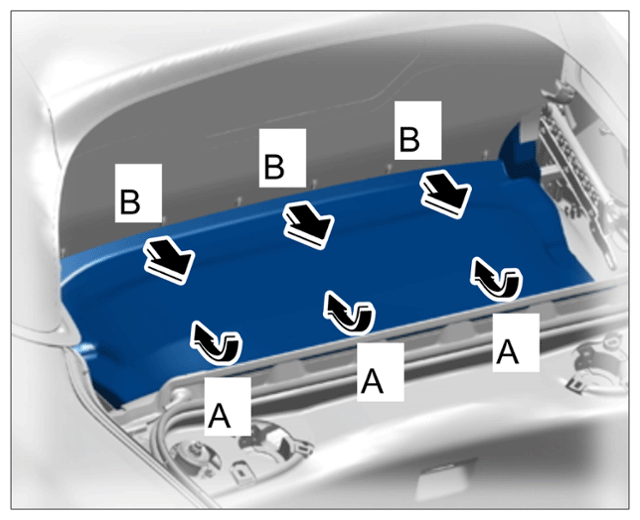

   Removing trim panel for convertible top compartment/engine compartment lid

4. Pull trim panel for convertible top compartment/engine compartment lid forward in the front area (arrows) -B-  . Fold trim panel together slightly and remove by pulling it up.
