Removing And Installing Front Luggage Compartment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

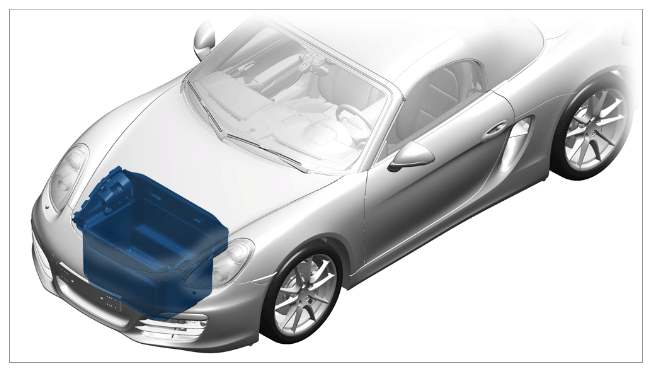

Installation position of front luggage compartment trim panel

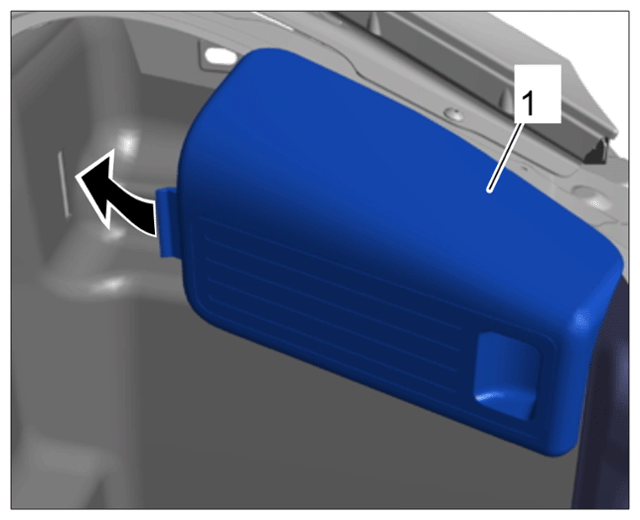

1. Unclip tool kit trim panel -1-  at the left, fold it up and remove it by pulling it sideways.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing tool kit trim panel

2. Remove tyre sealing system trim panel at the right in the same way as for the tool kit trim panel.

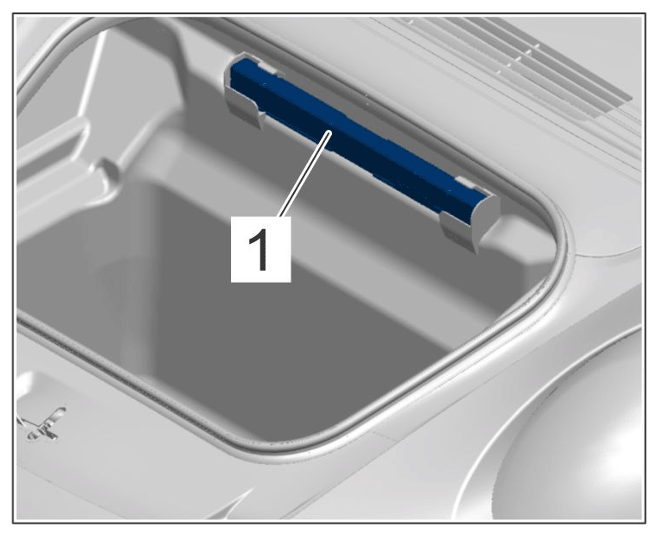

3. Remove warning triangle -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Warning triangle

4. Remove brackets for warning triangle.

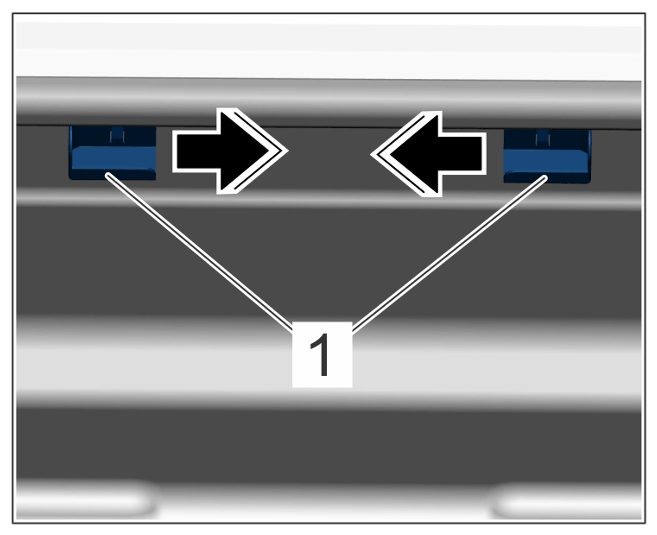

   1. 4.1 Variant 1:

      Push brackets for warning triangle -1-  into the centre -Arrow-  and remove them.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brackets for warning triangle - variant 1

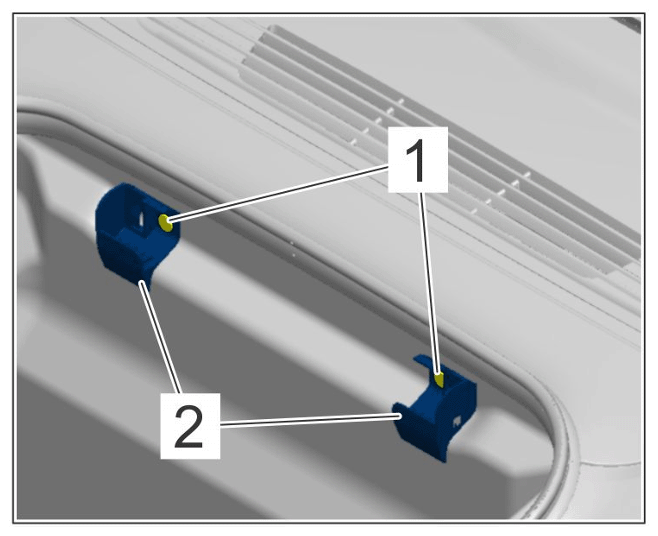

   2. 4.2 Variant 2:

      Pull off locking clips -1-  and remove brackets for warning triangle -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brackets for warning triangle - variant 2

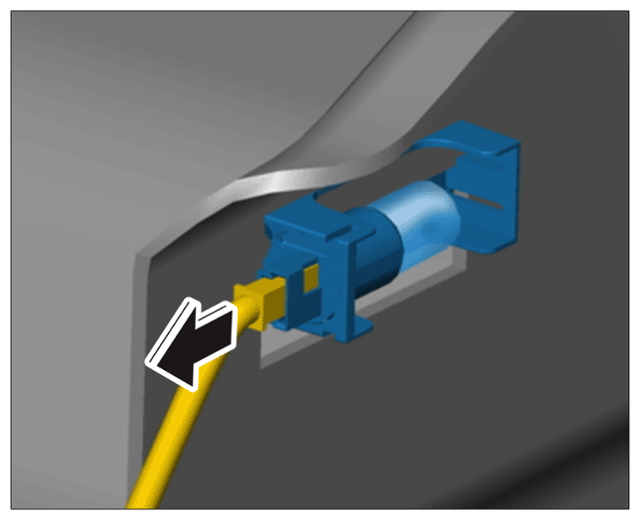

6. Disconnect electric plug connection for luggage compartment light -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting electric plug connection

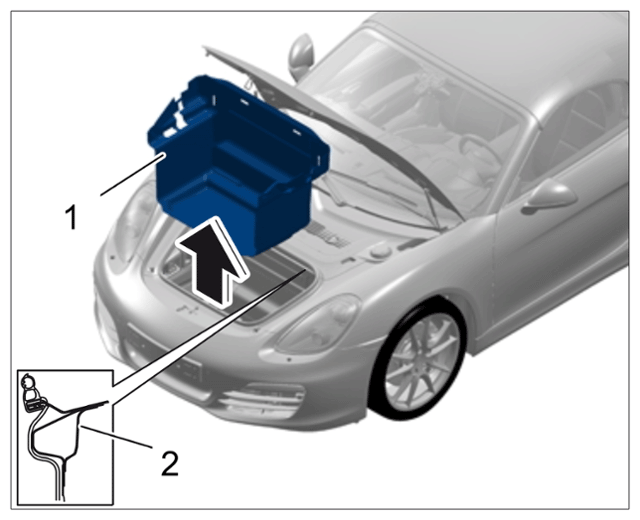

7. Unhook front luggage compartment trim panel -1-  from the seal -2-  and remove it by pulling it upwards -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing front luggage compartment trim panel

   Information

   When removing the trim panel, make sure not to damage any lines or electric plug connections.

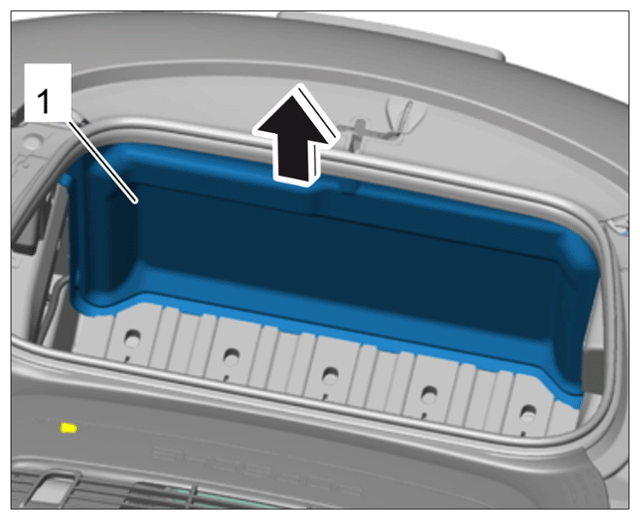

8. Loosen bulkhead trim panel -1-  and remove it by pulling it upwards -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing bulkhead trim panel

9. Installation is performed in reverse order.
