Removing And Installing Centre Console

Information

The number of electric plug connections will vary depending on equipment.

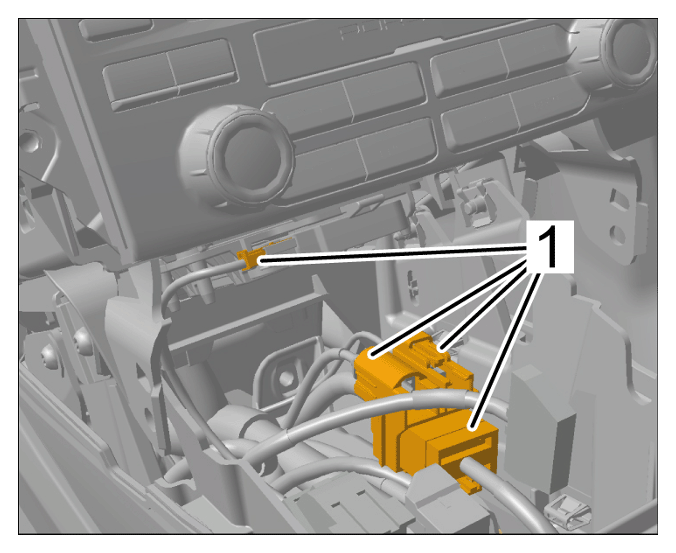

1. Disconnect electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnect the electric plug connections

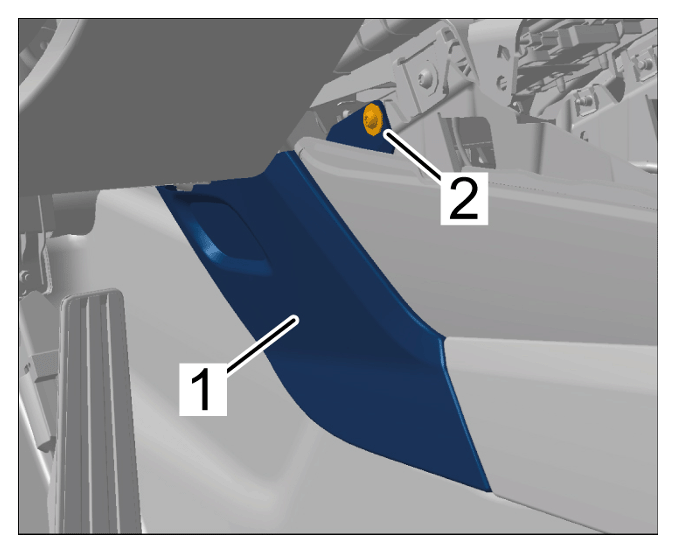

2. Unscrew screw -2-  and remove cover -1-  at the left and right.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing cover

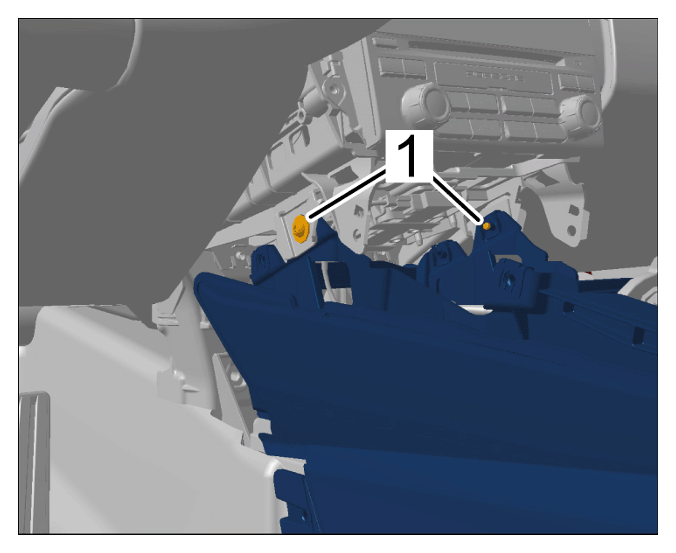

3. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening centre console at the front

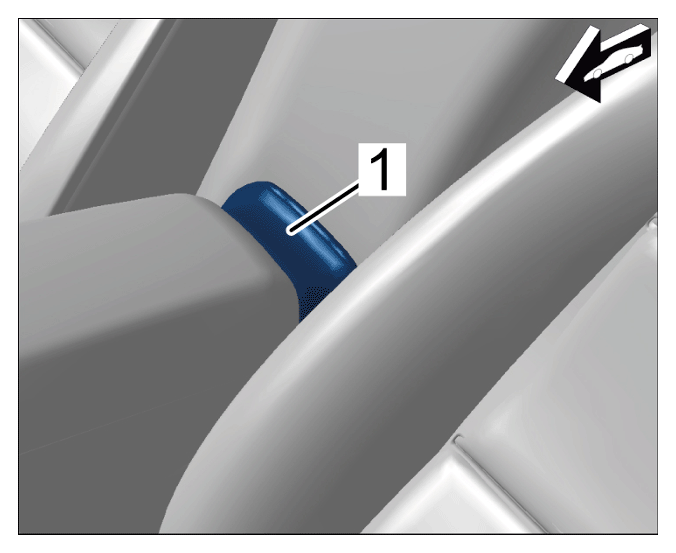

4. Remove rear trim -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing rear trim

5. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening centre console at the top

   Information

   Make sure not to damage any electric plug connections and lines.

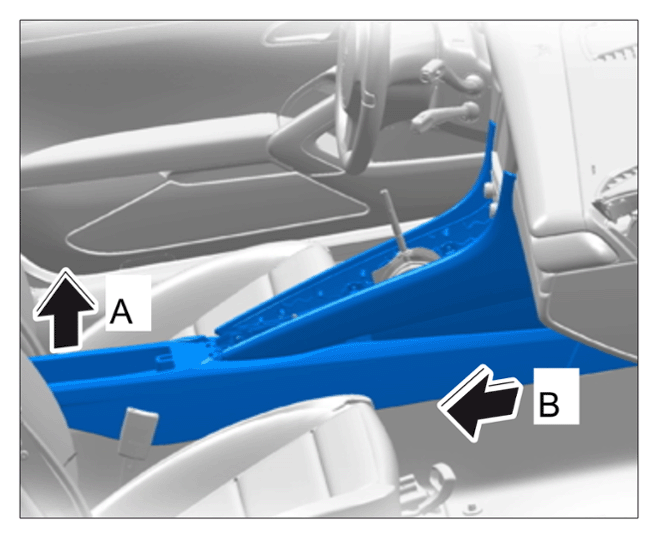

6. Lift centre console at the rear. -arrow A-
7. Remove centre console by pulling it to the rear. -arrow B-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing centre console

8. Installation is performed in reverse order. Pay particular attention to the following:

   Tightening torque for screws securing top of centre console to tunnel: > Tightening torque 9.7 N.m (7.5 ft lb.) +/- 0.9 N.m (0.5 ft lb.)
