Removing Rearview Mirror

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and remove remote control before disconnecting or removing electrical load.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

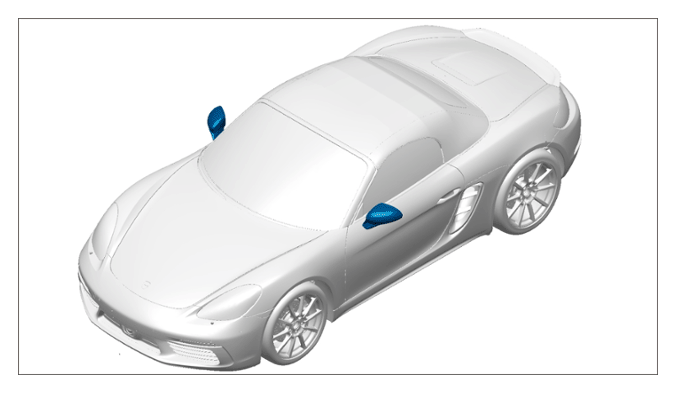

Installation position of rear-view mirror

Release electric plug connection for rear-view mirror -arrow a- and disconnect it -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection for rear-view mirror
Tie cord -1- onto the plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

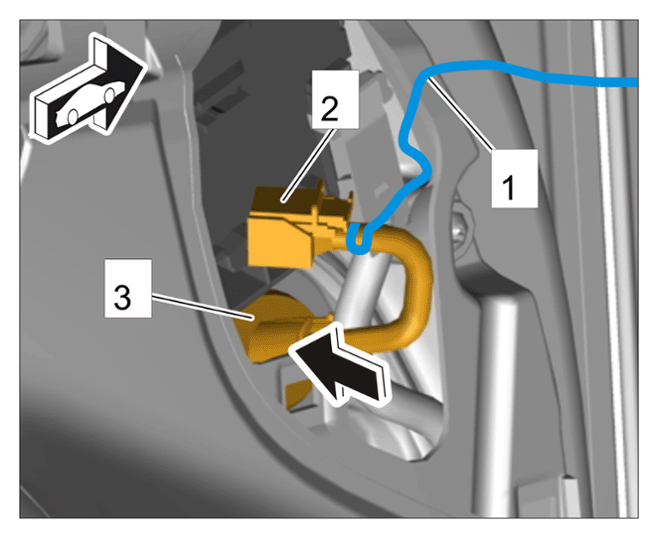

Loosening wire harness
Press rubber sleeve -3- on the wire harness inwards -arrow- .
Pull off rubber sleeve -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

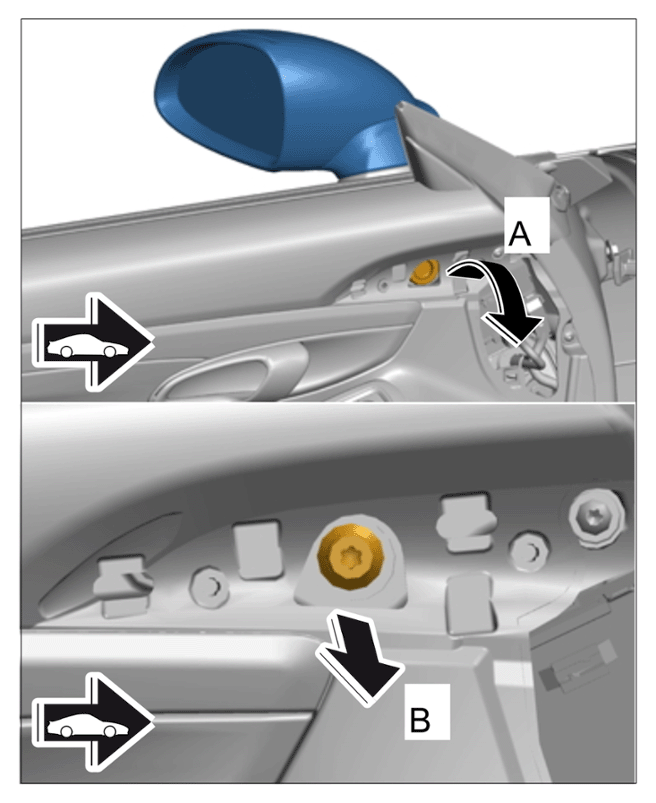

Loosening rear-view mirror
Unscrew fastening screw for rear-view mirror -arrow B- .
Remove rear-view mirror.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

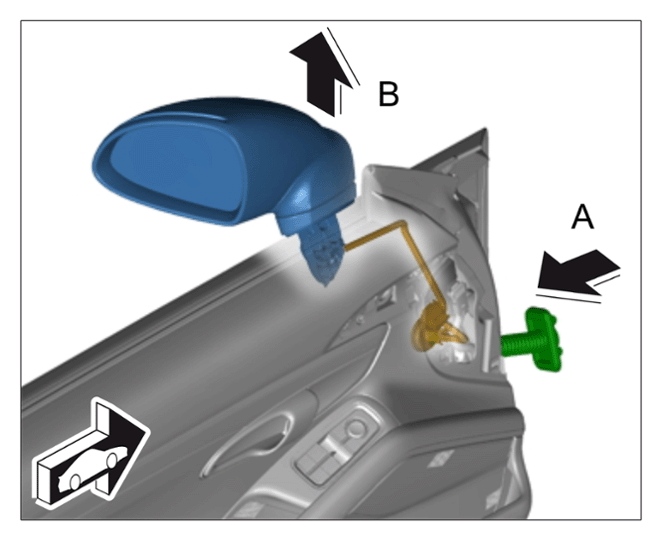

Removing rear-view mirror
1. 6.1 Press in rubber sleeve on door wire harness -arrow A- .
  Clear a space in order to make it easier to guide out the wire harness.
2. 6.2 Lift the rear-view mirror up and off -arrow B- .
3. 6.3 Pull wire harness out of the door.
4. 6.4 Detach the cord (remains in the door).
