Removing Number Plate Cover

1. 1.1 Unscrew and remove screws -4-  .
2. 1.2 Remove number plate from number plate cover -1-  .
3. 1.3 Unscrew and remove screws -2-  .
4. 1.4 Remove number plate cover -1-  from front apron.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

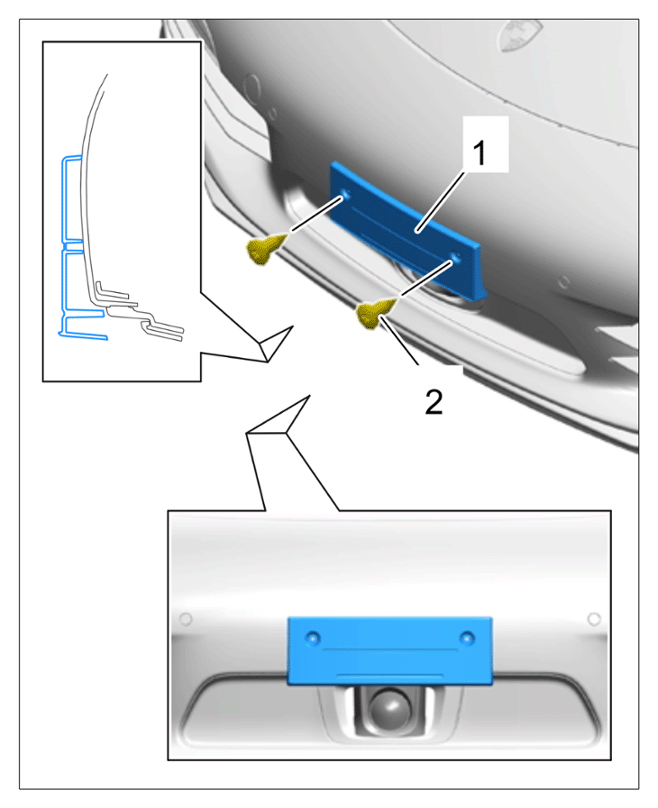

Installing number plate cover (Europe with and without ACC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

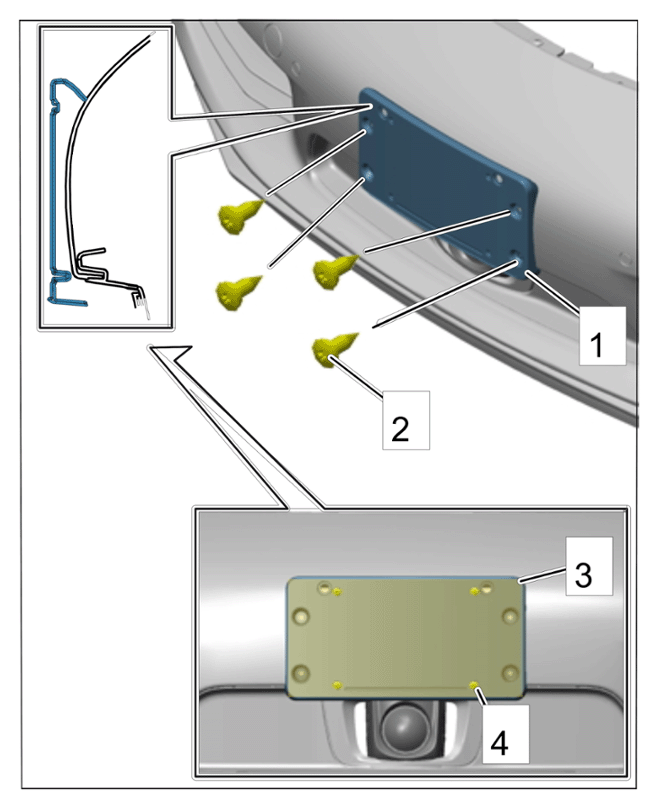

Installing number plate cover (Switzerland with ACC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

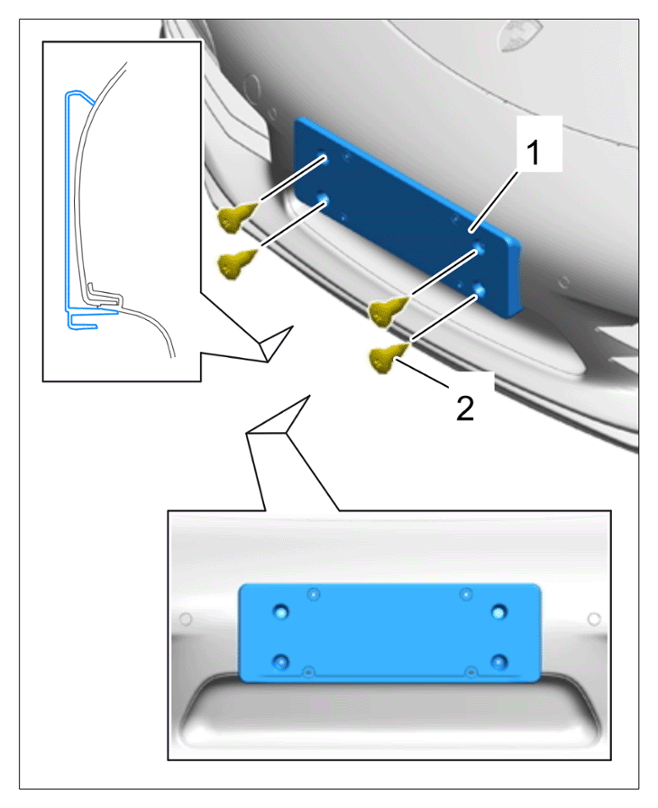

Installing number plate cover (Japan and USA without ACC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

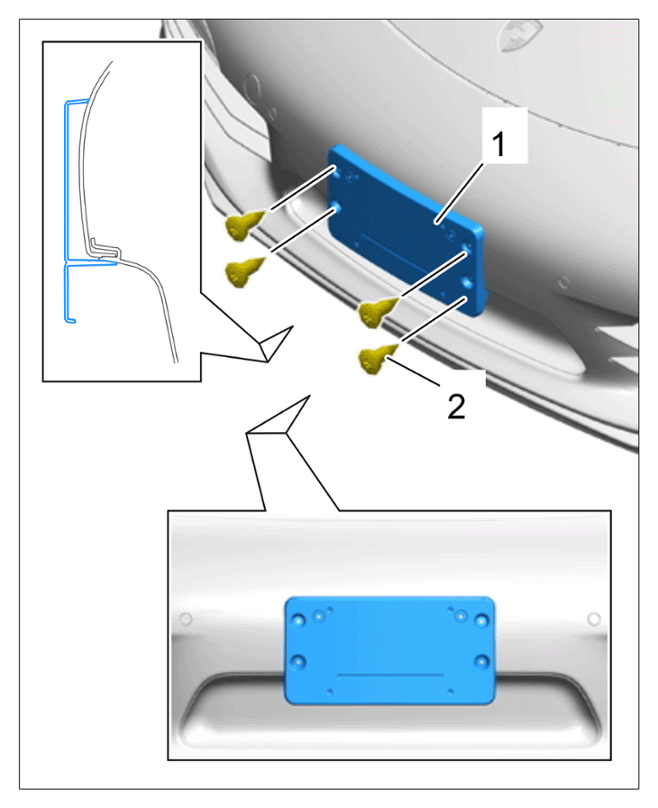

Installing number plate cover (Japan and USA with ACC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

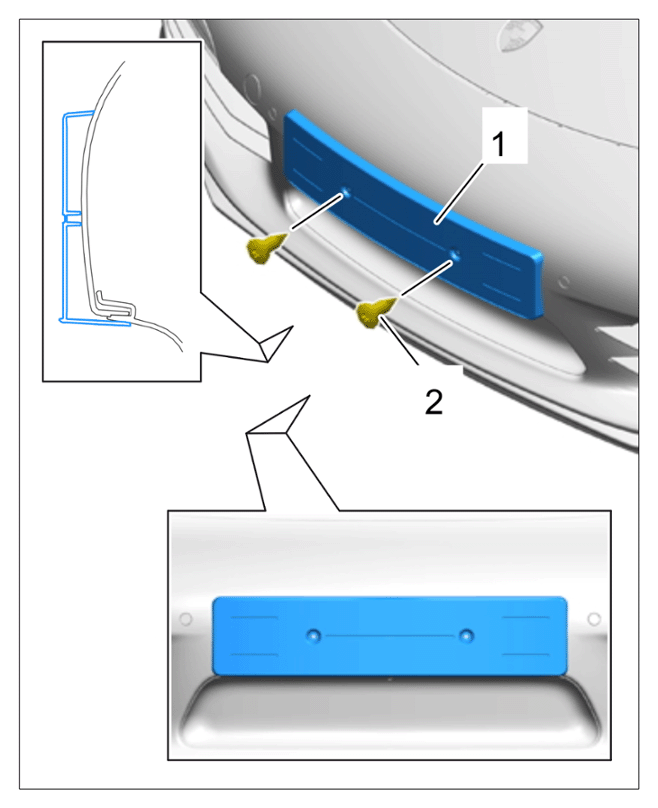

Installing number plate cover (China without ACC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

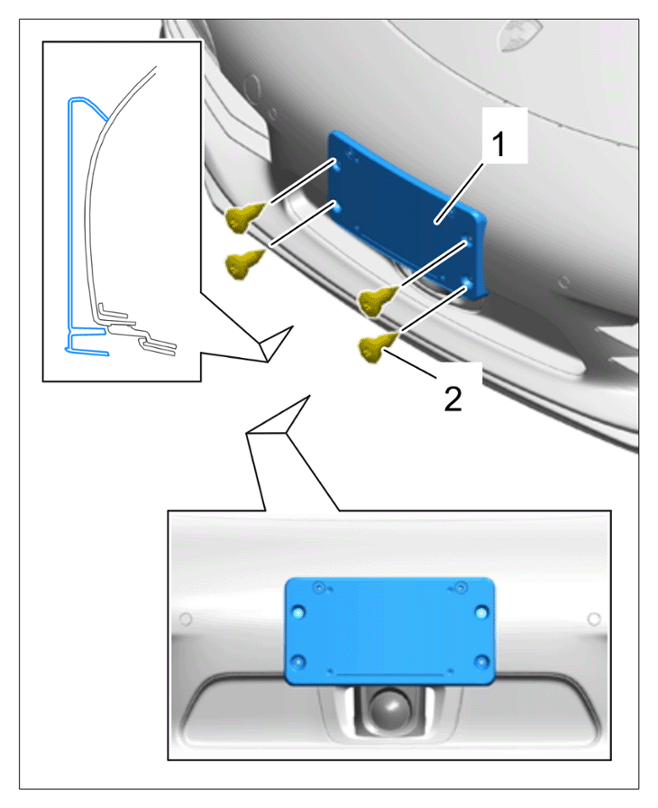

Installing number plate cover (China with ACC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

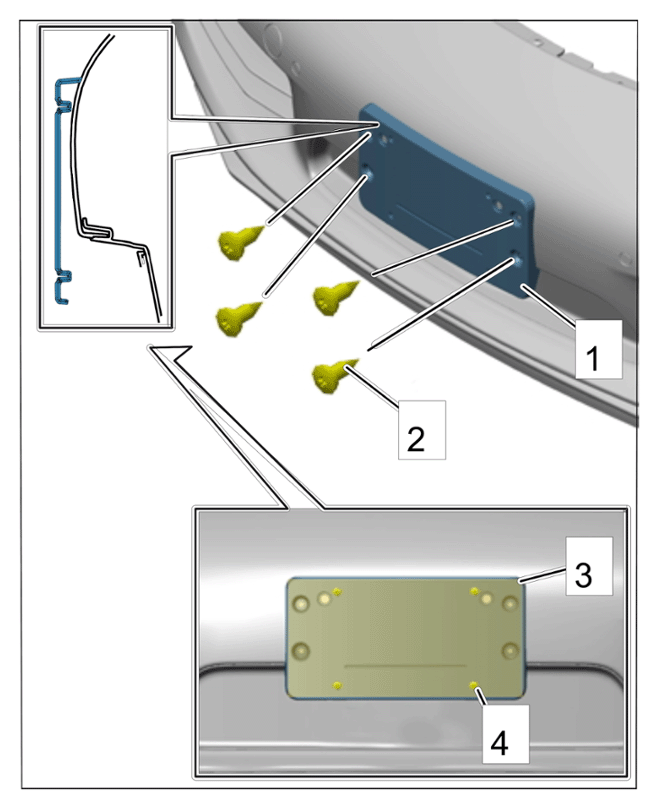

Installing number plate cover (Japan without ACC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

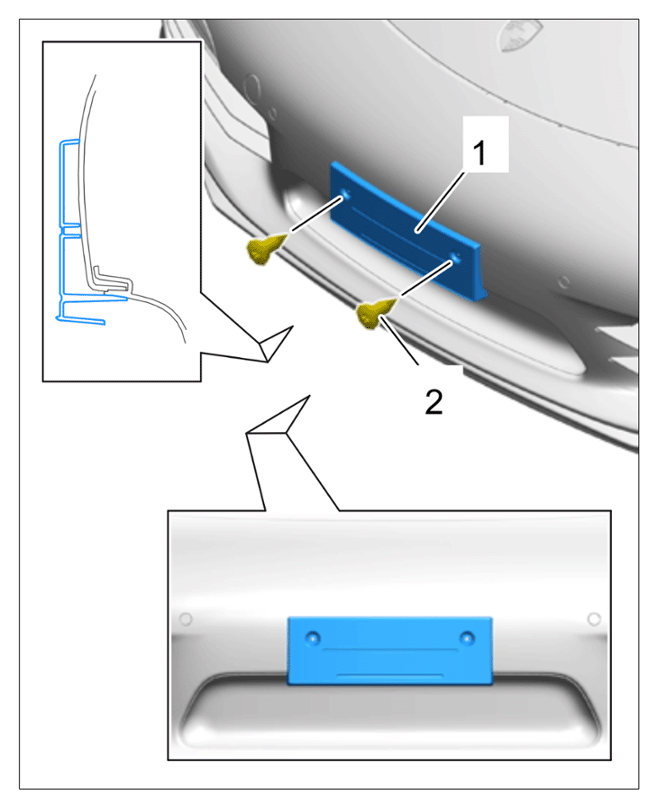

Installing number plate cover (Japan with ACC)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing number plate cover (rest of the world with and without ACC)

Information

Self-tapping screws are used to secure the number plate cover. When fitting the number plate cover for the first time (e.g. on a new front apron), the screws can be screwed directly into the front apron. Do not pre-drill holes.
