Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...	Toleranc...
Fastening screws for mirror base	Item 1	Tightening torque	0.75 N.m (0.55 ft lb.)	+/- 0.25 N.m (0.18 ft lb.)

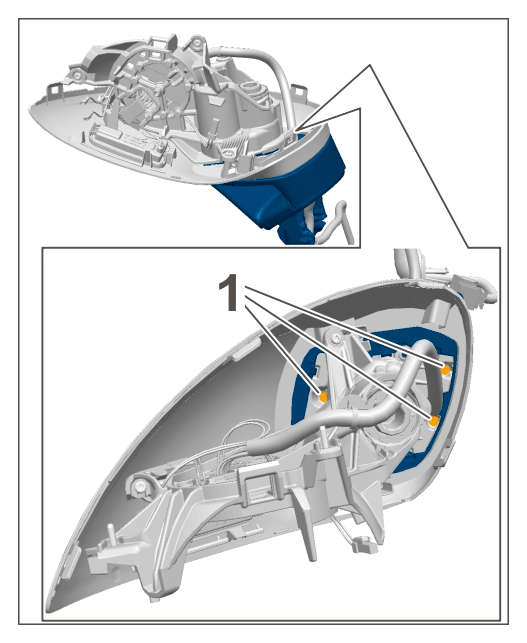

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing mirror base
Fastening screws for lower part of housing	Item 1	Tightening torque	0.55 N.m (0.4 ft lb.)	+/- 0.25 N.m (0.18 ft lb.)

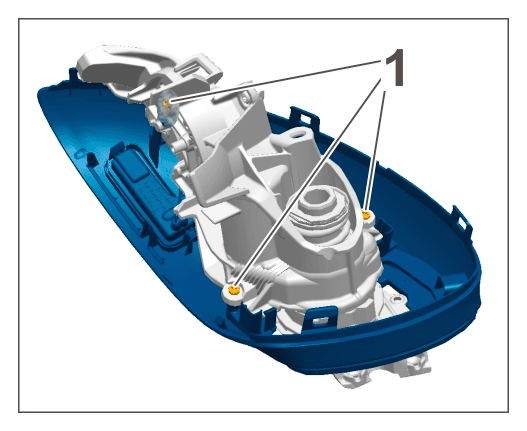

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing fastening screws
