Removing Mirror Glass

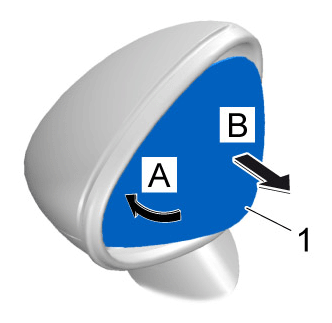

  1. Press the outside of the mirror glass inwards -A-  and carefully pull it out on the inside -B-  .
    G16223856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing mirror glass

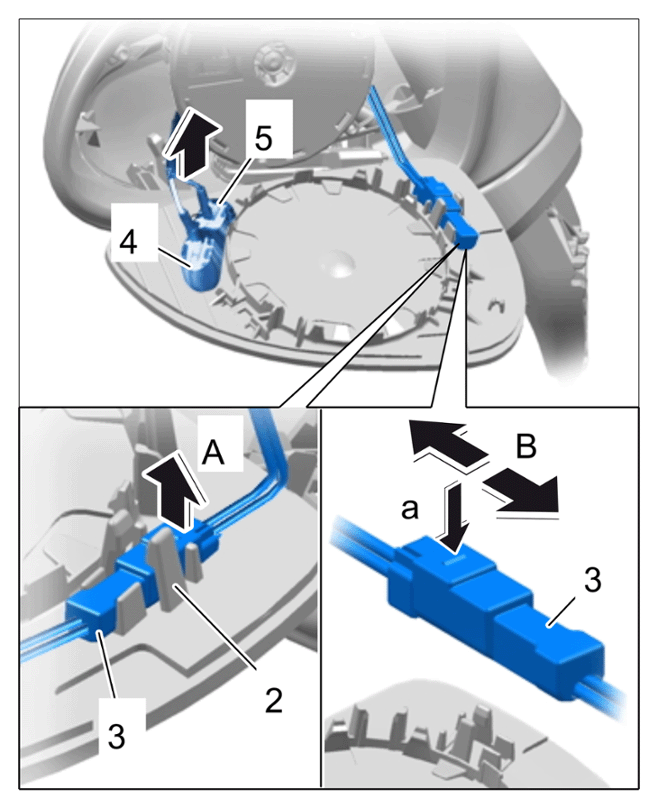

  2. Release and unplug electric plug connections -4 + 5-  .
    G16223857Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting plug connections

  3. Unclip electric plug connection -3-  from the bracket -2-  (-A-  ).
  4. Release plug connection -3-  (-a-  ) and pull it off -B-  .
