Removing Rear Spoiler

Information

The installation position diagram shows the component on the Boxster as an example. The component and mounting concept are identical for the Cayman.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

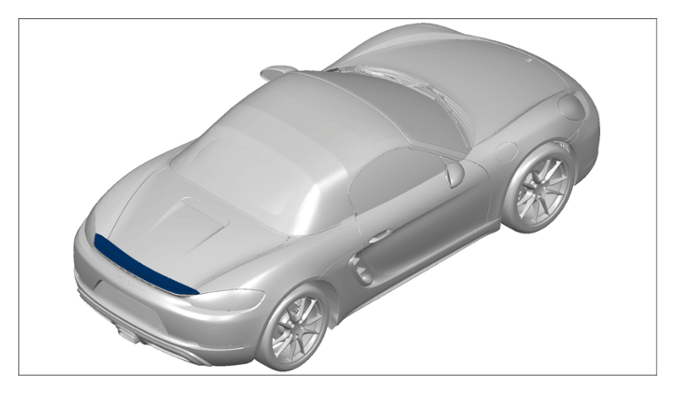

Installation position of rear spoiler

1. Extend rear spoiler.
2. Open the rear lid.
3. Remove upper part of rear spoiler.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

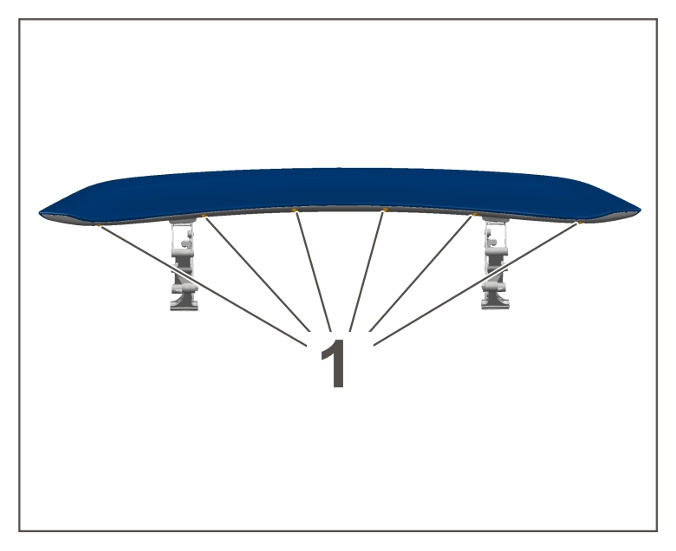

   Fastening screws for upper part

   1. 3.1 Unscrew fastening screws -1-  .
   2. 3.2 Remove upper part of rear spoiler.
4. Remove lower part of rear spoiler.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

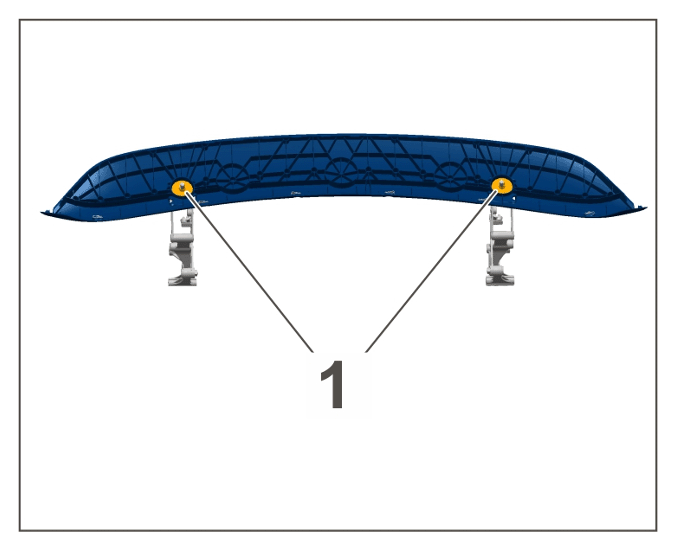

   Fastening nuts for lower part

   1. 4.1 Mark position of fastening nuts -1-  .
   2. 4.2 Unscrew fastening nuts -1-  .
   3. 4.3 Remove lower part of rear spoiler.
