Installing Rear Spoiler

Position lower part of rear spoiler according to the markings and tighten fastening nuts -1- hand-tight.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

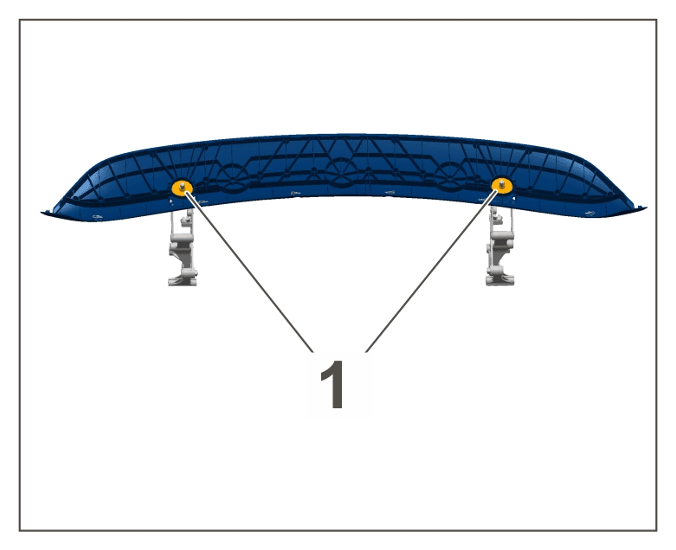

Fastening nuts for lower part
Insert upper part of rear spoiler and adjust gap dimensions.
Tighten fastening nuts -1- to > Tightening torque 15 N.m (11 ft lb.) +/- 10 % .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts for lower part
Install upper part of rear spoiler.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

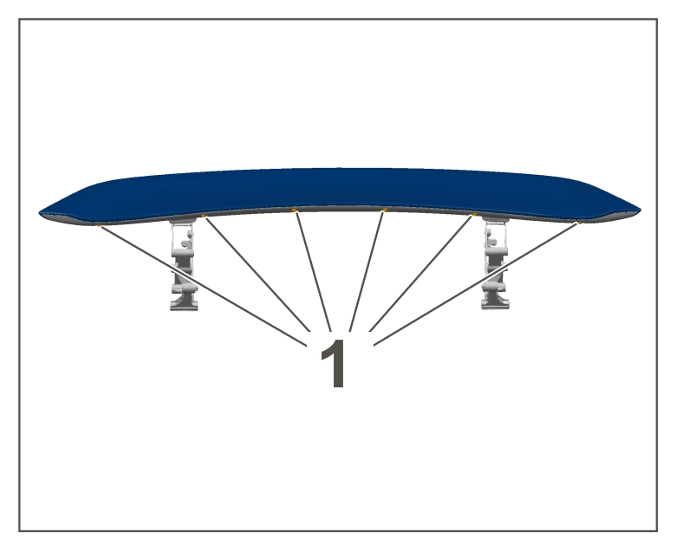

Fastening screws for upper part
1. 4.1 Extend rear spoiler.
2. 4.2 Open the rear lid.
3. 4.3 Insert upper part of rear spoiler.
4. 4.4 Screw in and tighten fastening screws -1- to > Tightening torque 2.2 N.m (1.5 ft lb.) .
