Removing Rear Logo

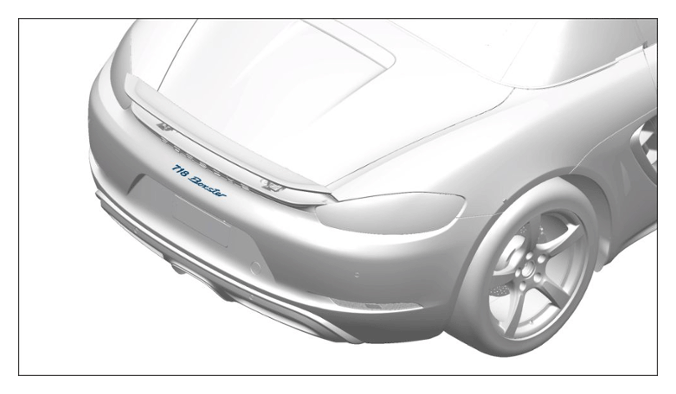

G16223833Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear logo

Information

Not for PORSCHE logo.

The logo is replaced together with the trim.

Information

Logos cannot be re-used.

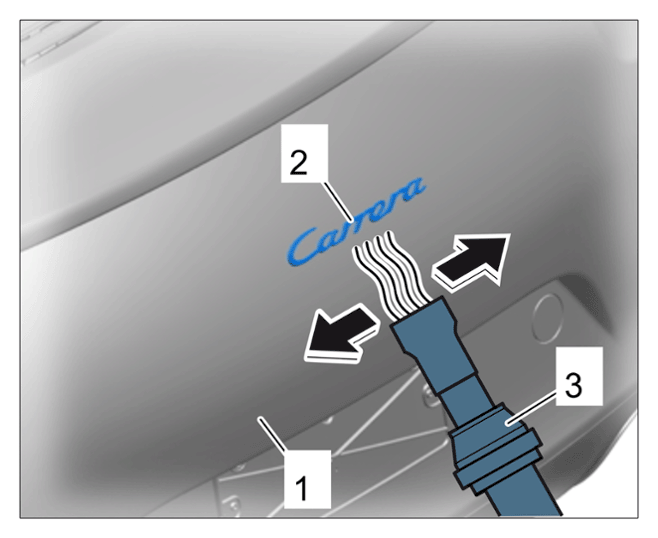

  1. Heat the area -1-  around the logo -2-  using the > V.A.G 1416 - Hot-Air Blower-3-  .
    G16223834Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heating area around the logo (shown on the 991)

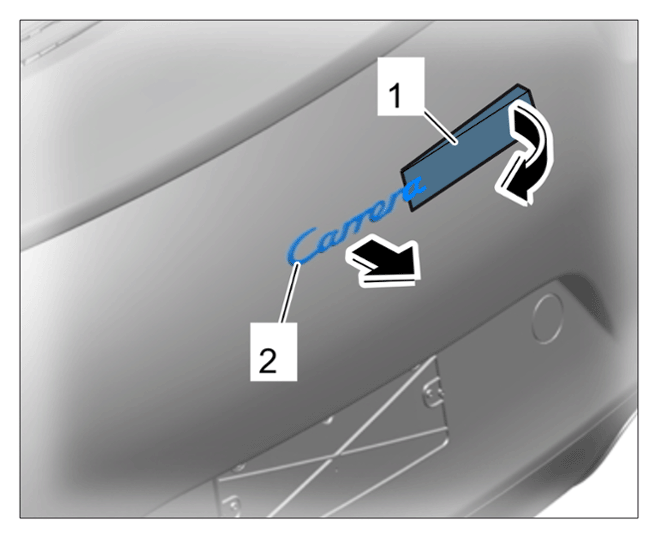

  2. rise off the logo using a plastic spatula.
    G16223835Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rising off logo (shown on the 991)

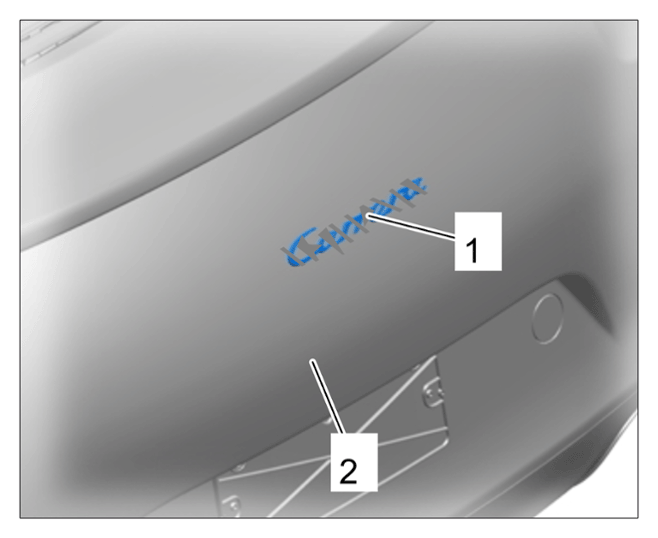

  3. Remove residual adhesive -1-  around the logo -2-  using silicone remover.
    G16223836Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cleaning logo area (shown on the 991)
