Installing Logo Rear

Information

Not for PORSCHE logo.

The logo is replaced together with the trim.

Information

• Carefully clean any dirt, grease, wax and other impurities off the fitting area of the body using isopropyl.
• Always use a clean cloth.
• The room and object temperature must be at least  > Setpoint value + 15°C  .
• Humidity should be  > Setpoint value 50 % +/- 10 %  .
• Do not touch the bonding surface again after the protective paper has been removed.
• Wear clean gloves during the bonding process in order to guarantee adequate adhesion.
• Before washing the vehicle in a car wash, the parts must have been bonded for at least  > Time 72 h  .

1. Position logo template on the vehicle.

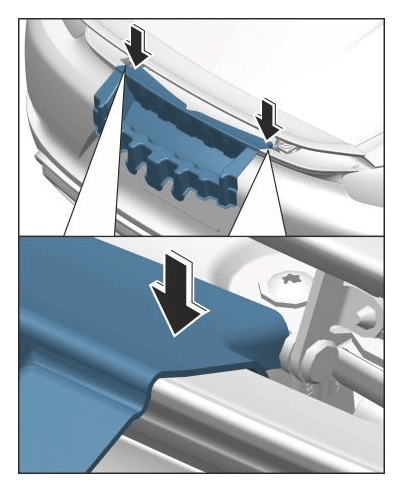

   1. 1.1 Insert logo template into the gap between the rear bumper and the spoiler output drive.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Positioning the template

2. Remove the protective paper from the logo.

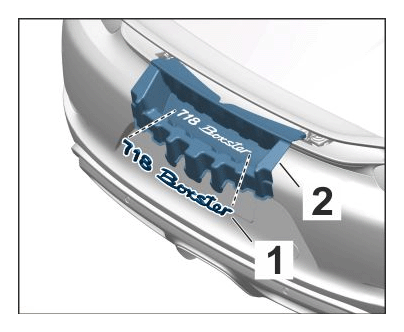

3. Align the logo -1-  using the logo template -2-  and press it on firmly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Affixing the logo

4. Removing the logo template from the vehicle.
