Installing Trim Panel For Rear Lid

  1. Pull protective film off the bonding surface.
    G16223806Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off protective film

  2. Position and affix trim panel using guide mandrels.
    G16223807Courtesy of PORSCHE CARS NORTH AMERICA, INC.

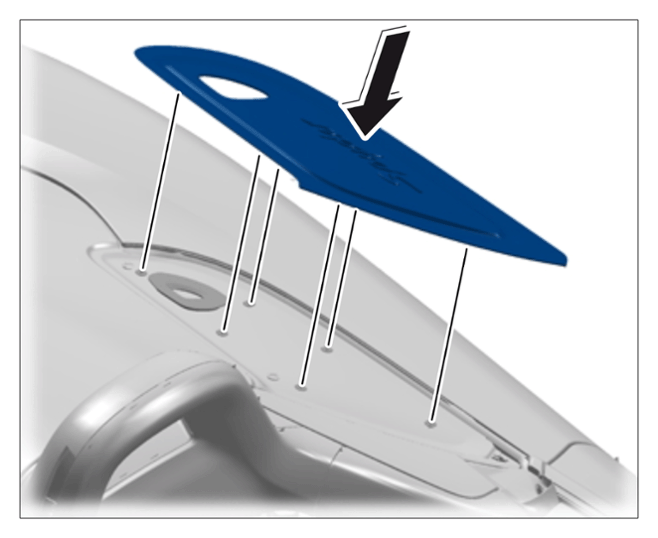

    Installing trim panel
