Removing Radiator Grille

  1. Unscrew and remove screws -1-  .

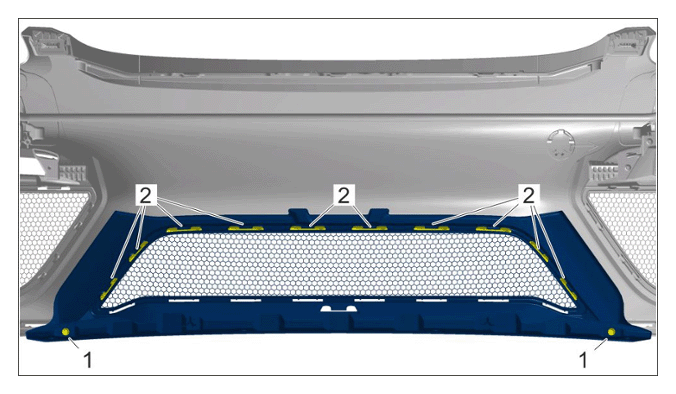

    G16223788Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Radiator grille

  2. Release locking lugs -2-  .
  3. Remove radiator grille.
