Removing Front Air Grille (Air Guide)

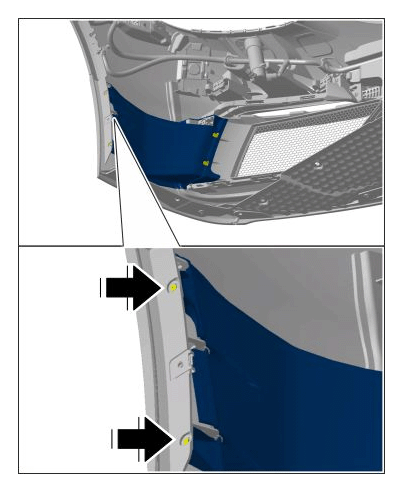

  1. Drill out rivets on front apron.
    G16223783Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front air grille (air guide)

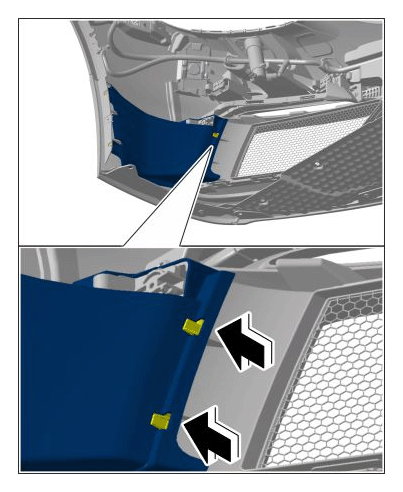

  2. Release locking lugs.
    G16223784Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front air grille (air guide)

  3. Swivel out front air grille (air guide) and remove it.
