Removing Front Air Grille (Trim)

  1. Release locking lugs -1 and 2-  .

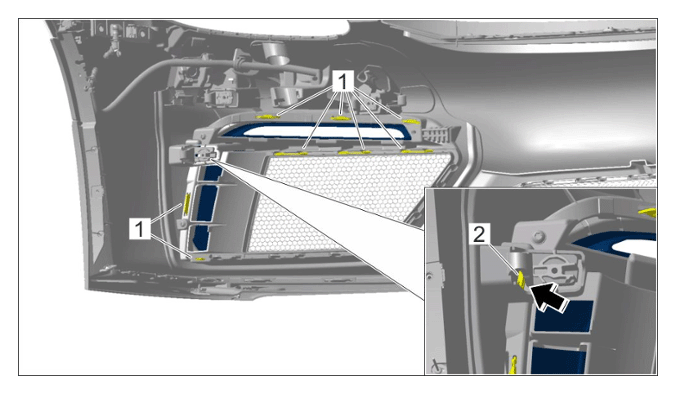

    G16223781Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lugs for front air grille (trim)

  2. Remove front air grille (trim).
