Removing Front Air Grille (Top)

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

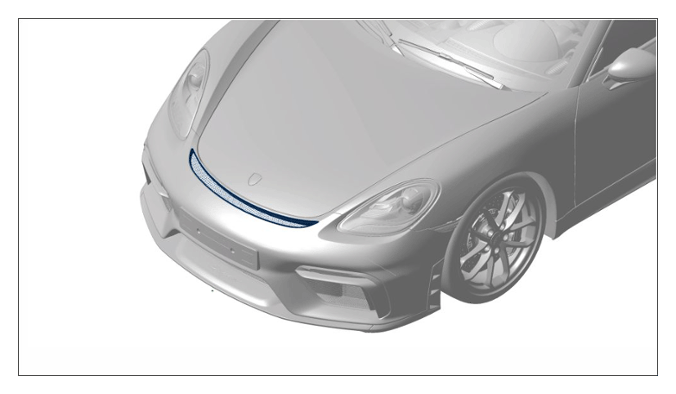

Installation position

1. Loosen front air grille on the inside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

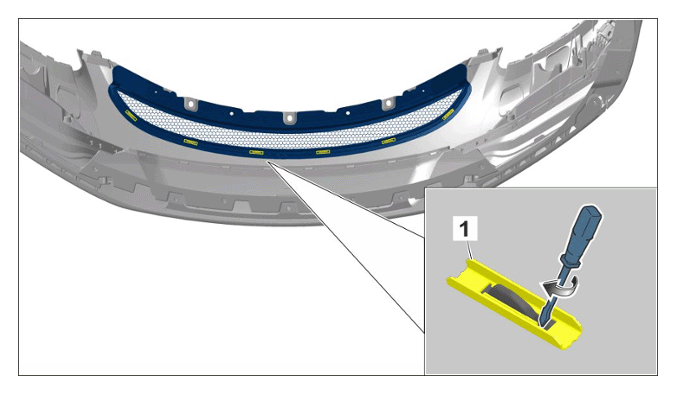

   Front air grille, inner

   1. 1.1 Open up retaining clips -1-  using a screwdriver.
   2. 1.2 Remove retaining clips.
2. Loosen front air grille at the top.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

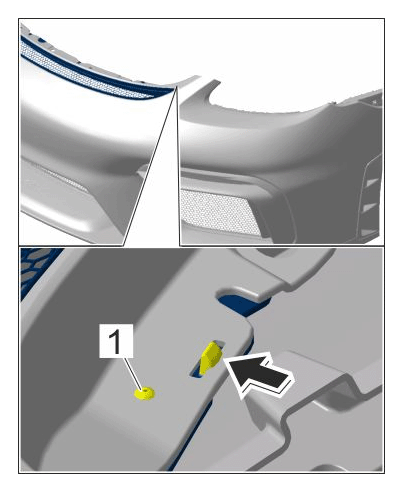

   Front air grille, top

   1. 2.1 Drill out blind rivet -1-  .
   2. 2.2 Release retaining clip -arrow-  .
3. Remove front air grille.
