Removing Front Air Grille (At The Sides)

  1. Loosen washer-fluid hose at the front air grille.
  2. Unscrew screws -1-  .
  3. Release locking lugs -2 and 3-  .

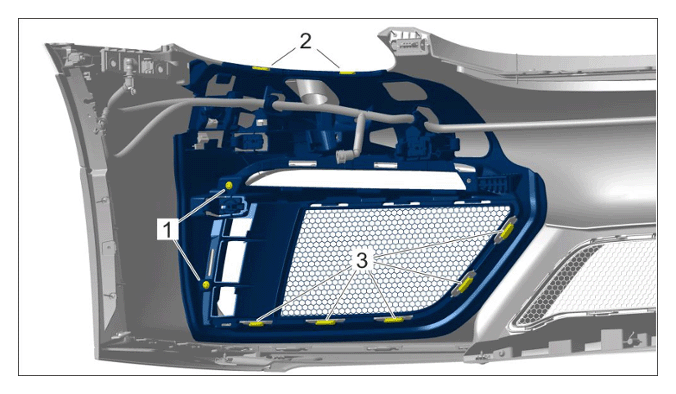

    G16223776Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front air grille (at the sides)

  4. Remove front air grille (at the sides).
