Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Centre front spoiler to outer front spoiler (F1) | Set gap on both sides uniformly | Gap dimension | 2 mm | ||
|

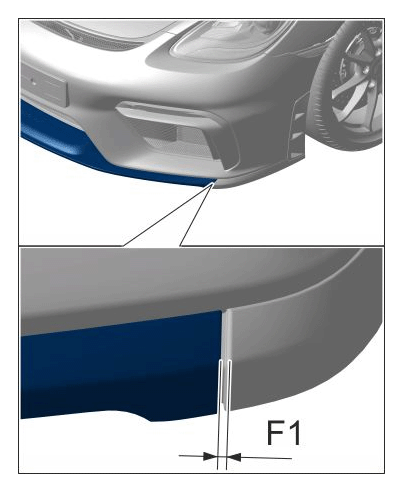

Gap dimension on front spoiler at the sides |
|||||
| Fastening screws for front spoiler | Observe the specified tightening sequence | Tightening torque | 3.2 N.m (2.4 ft lb.) | ||
|

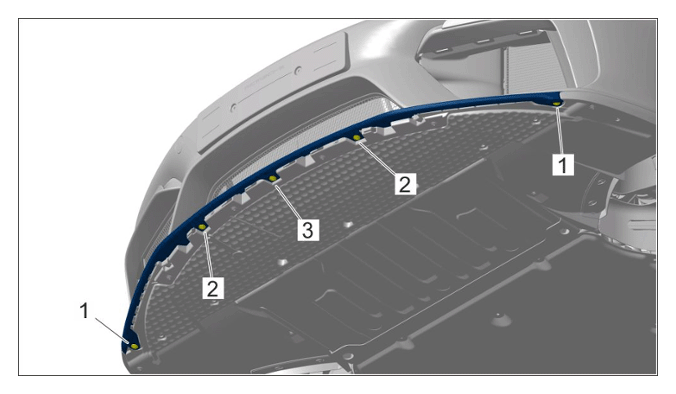

Fastening screws for front spoiler |
|||||
