Installing Front Spoiler

Information

• Mix 3 drops of non-greasy washing-up liquid in 1, 000 ml of distilled water.
• To reduce assembly forces, coat the component at assembly points with application fluid.

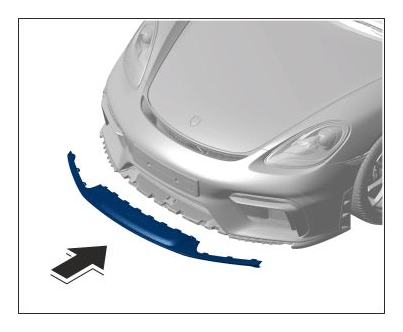

1. Position front spoiler on front apron.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front spoiler

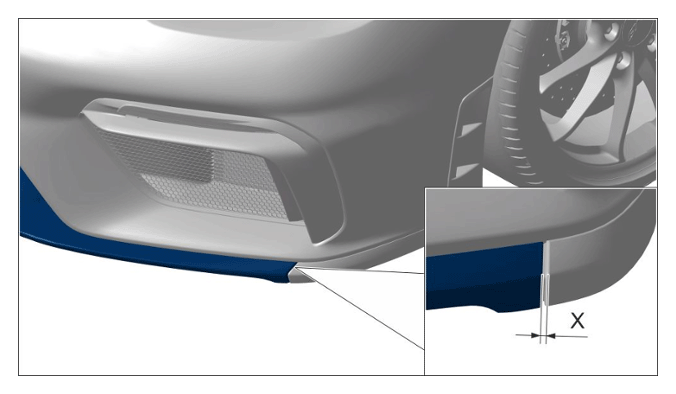

2. Align front spoiler at the sides. > Gap dimension 2 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Gap dimension

3. Engage front spoiler fully.
4. Screw in screws.

   Follow the tightening sequence shown.

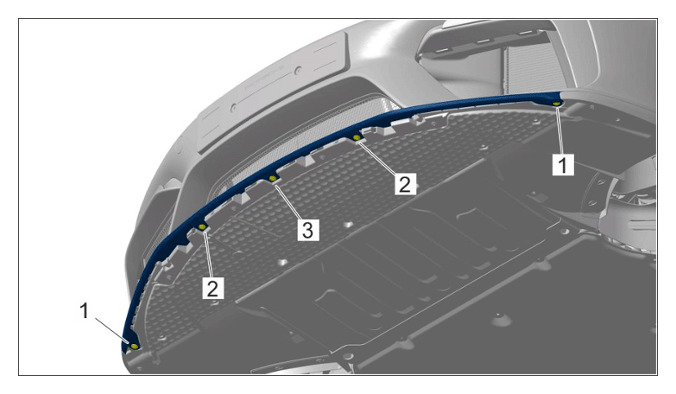

   Fig 1: Front Spoiler Fastening Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws for front spoiler

5. Tighten screws to the specified tightening torque. > Tightening torque 3.2 N.m (2.4 ft lb.)
