Removing Front Spoiler At The Sides

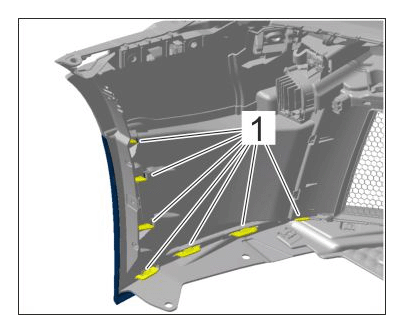

  1. Release locking lugs on the inside of the front apron.
    G16223758Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lugs

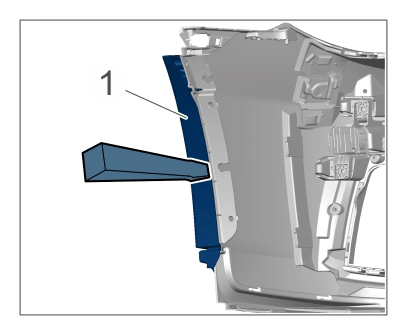

  2. Lever off front spoiler at the sides -1-  using an assembly wedge.
    G16223759Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front spoiler (at the sides)

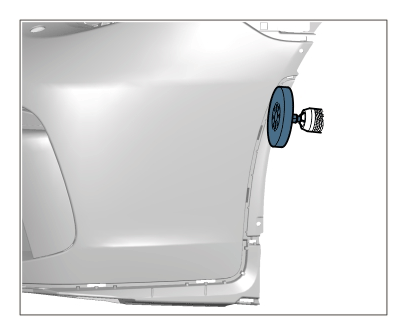

  3. Remove adhesive residue using adhesive strip remover. > VAS 6349 - Adhesive Strip Remover
    G16223760Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Film eraser
