Installing Front Spoiler At The Sides

Information

• Carefully clean any dirt, grease, wax and other impurities off the fitting area of the body using isopropyl.
• Always use a clean cloth.
• The room and object temperature must be at least  > Nominal value + 15°C.
• Humidity should be  > Nominal value 50 % +/- 10 %  .
• Do not touch the bonding surface again after removing the protective paper.
• Wear clean gloves during the bonding process in order to guarantee adequate adhesion.
• The parts must have been bonded for at least  > Nominal value 72 h before washing the vehicle in a car wash.

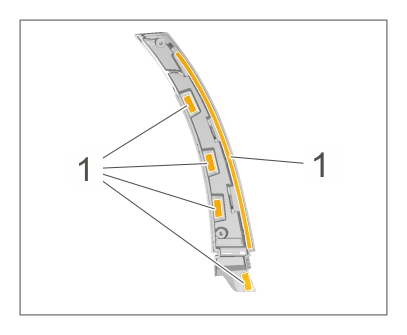

1. Pull off protective film -1-  on adhesive strip.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Protective film

2. Position front spoiler (at the sides).
3. Engage front spoiler at the sides fully at the locking lugs
4. Press on front spoiler at the sides in the bonding area over the entire surface.
