Removing Trim Frame For Tailpipe Cover

  1. Remove trim frame for tailpipe cover -1-  .

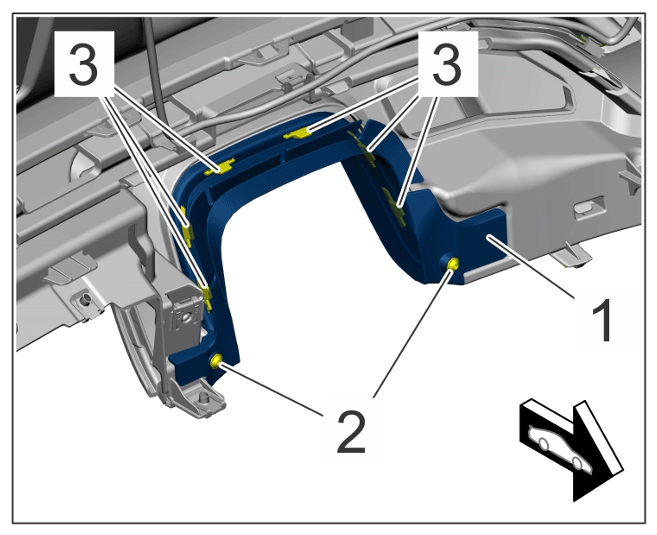

    G16223755Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim frame for tailpipe cover

    1. 1.1 Unscrew screws -2-  .
    2. 1.2 Loosen locking lugs -3-  .
    3. 1.3 Detach trim frame for tailpipe cover -1-  .
