Technical Values
TIGHTENING TORQUE SPECIFICATION
| Location |
Descri... |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Fastening screws on retaining strip |
Item 1 |
Tightening torque |
7 N.m (5.2 ft lb.) |
+ 0.7 N.m (0.5 ft lb.) |
- 1 N.m (0.7 ft lb.) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

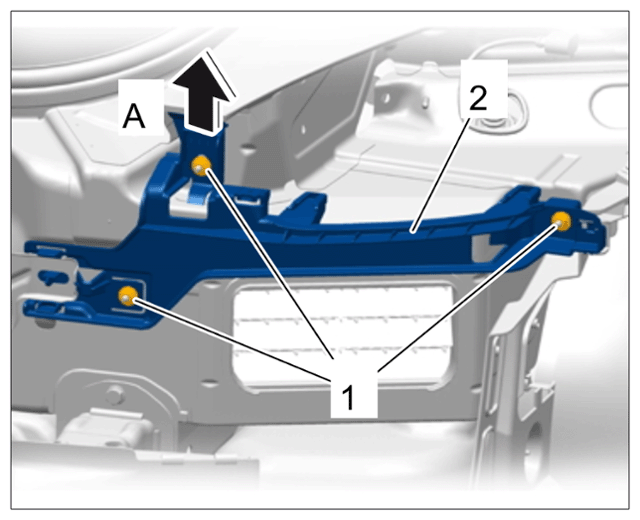

Installing rear retaining strip |
