Installing Rear Retaining Strip

  1. Fit rear retaining strip -2-  and slide it up -A-  until the retaining strip is touching the side panel.

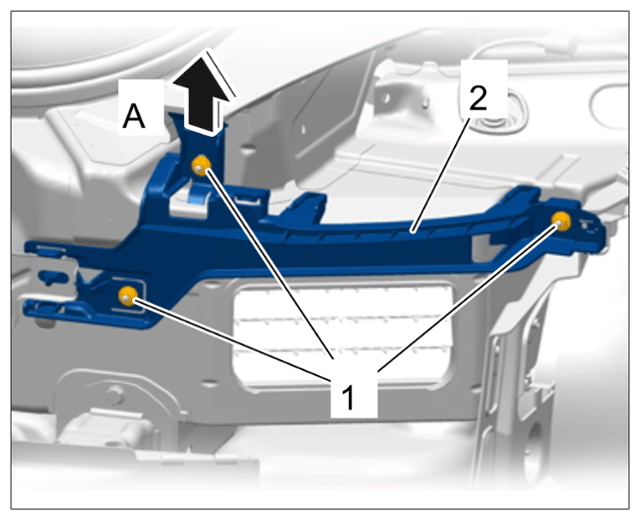

    G16223747Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing rear retaining strip

    1  Fastening screws
    2  Rear retaining strip
  2. Screw in and tighten fastening screws -1-  to > Tightening torque 7 N.m (5.2 ft lb.) + 0.7 N.m (0.5 ft lb.) - 1 N.m (0.7 ft lb.)  .
