Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Des...	Type	Basic val...	Toleranc...	Toleranc...
Fastening screws on the trim element (logo)	Item 1	Tightening torque	2.4 N.m (1.8 ft lb.)	+ 10 %	+/- 15 %

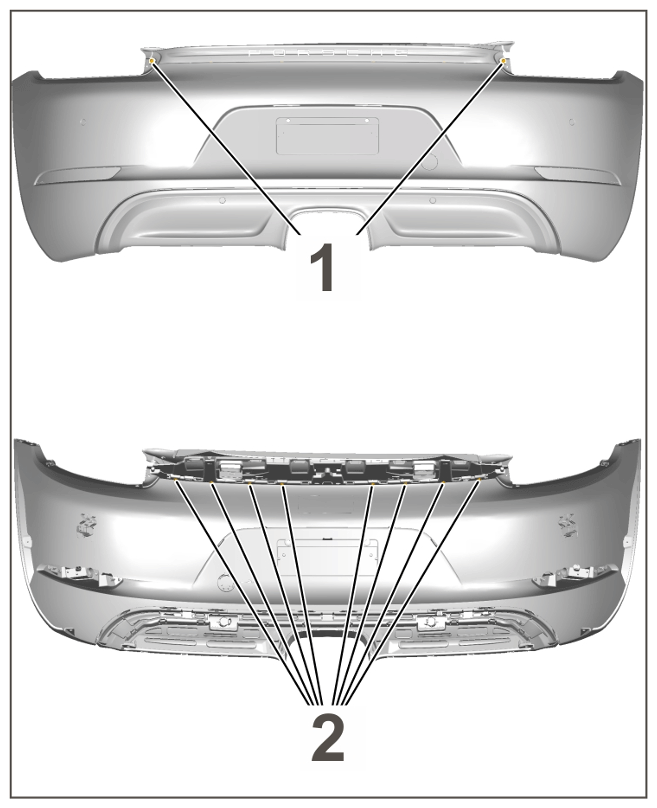

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screw for cover	Item 2	Tightening torque	2.4 N.m (1.8 ft lb.)	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

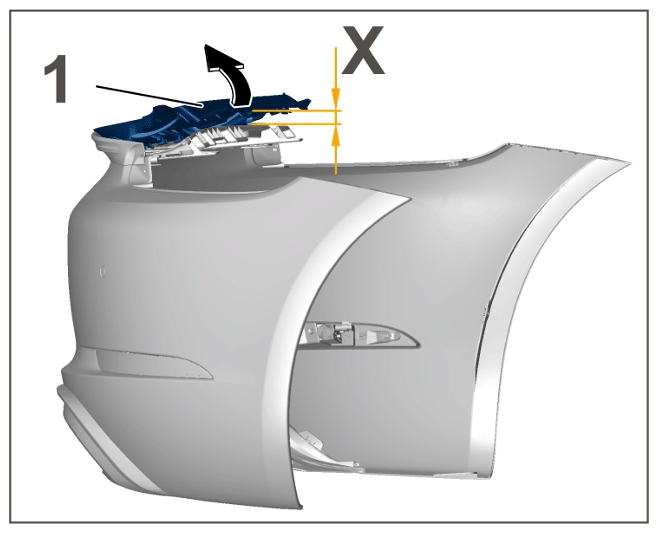

Distance from cover to rear bumper	Item X	Length	5 cm	+/- 1 cm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover
