Removing Rear Panel (Logo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

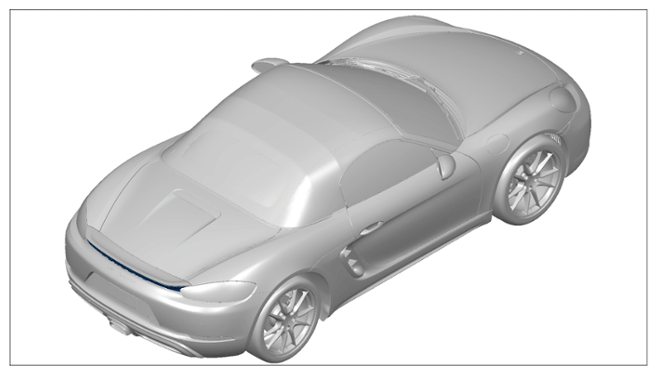

Rear panel (logo)

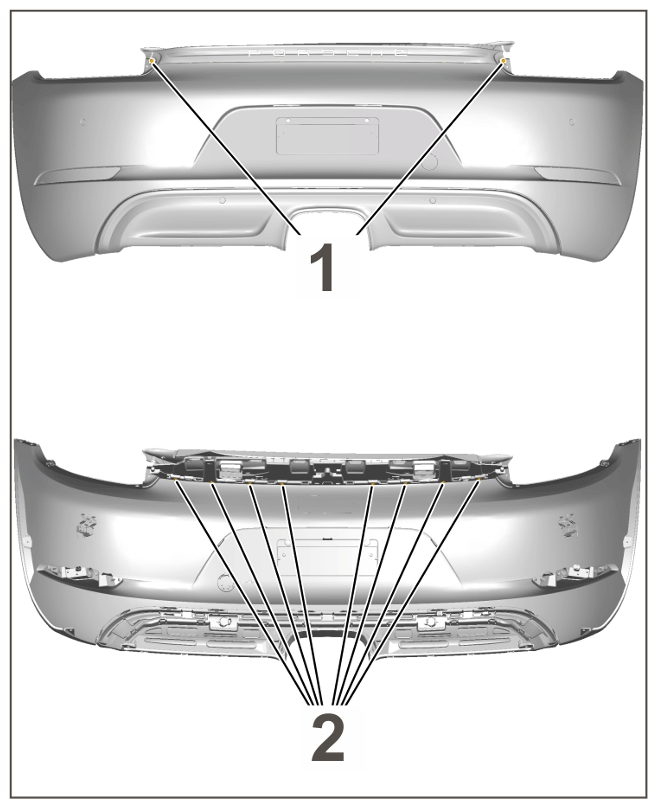

1. Unscrew fastening screws -1-  and -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

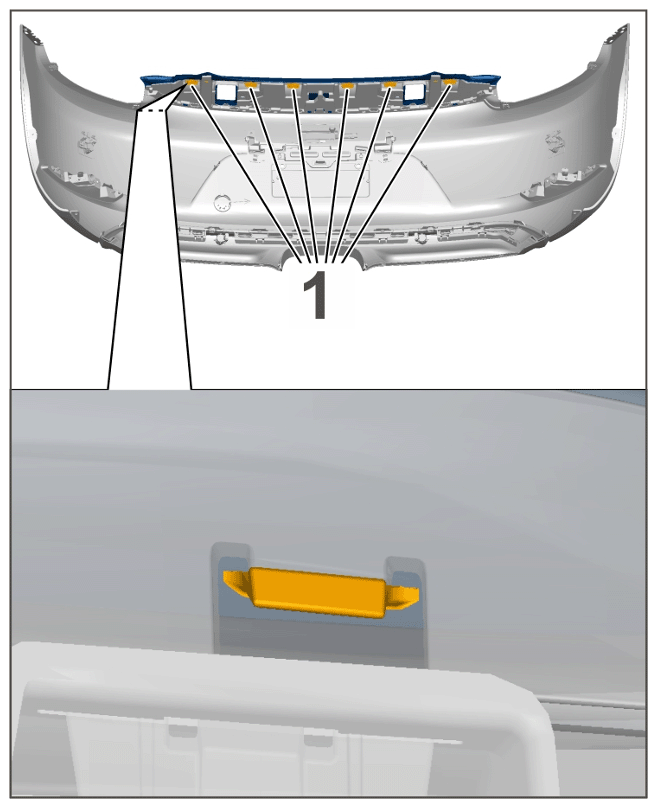

2. Unclip fixing clips -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fixing clips

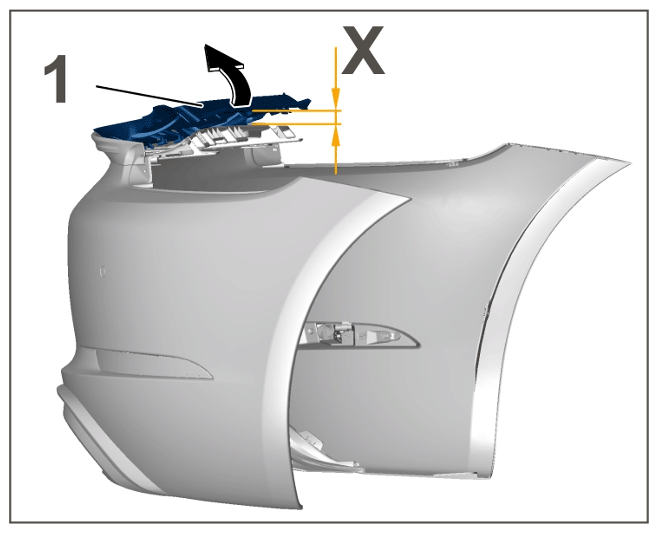

3. Lift cover -1-  by > Length 5 cm +/- 1 cm  . -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

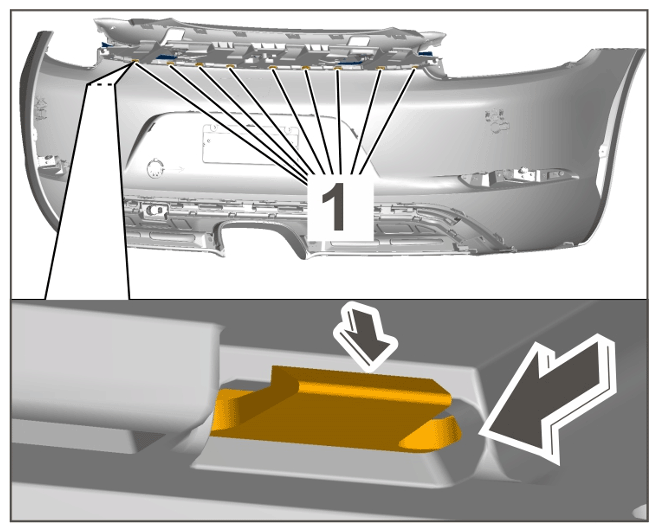

4. Unclip fixing clips -1-  using a suitable tool -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fixing clips

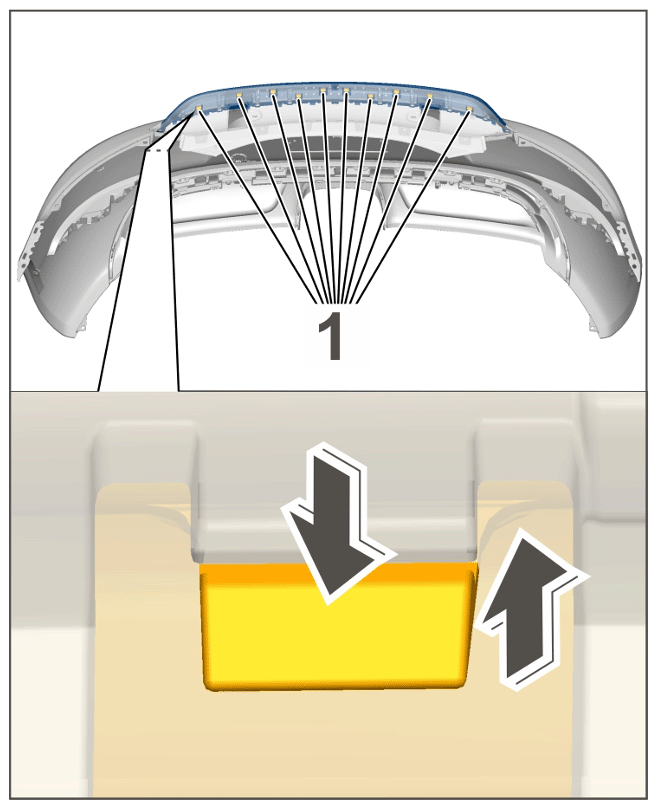

5. Unclip fixing clips -1-  . -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fixing clips

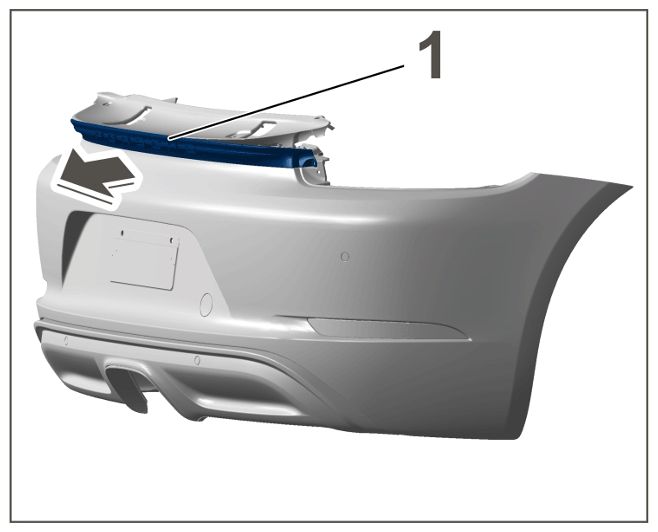

6. Remove rear panel (logo) -1-  . -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pulling off rear panel (logo)
