Installing Rear Panel (Logo)

  1. Clip in cover.
  2. Clip in rear panel (logo).

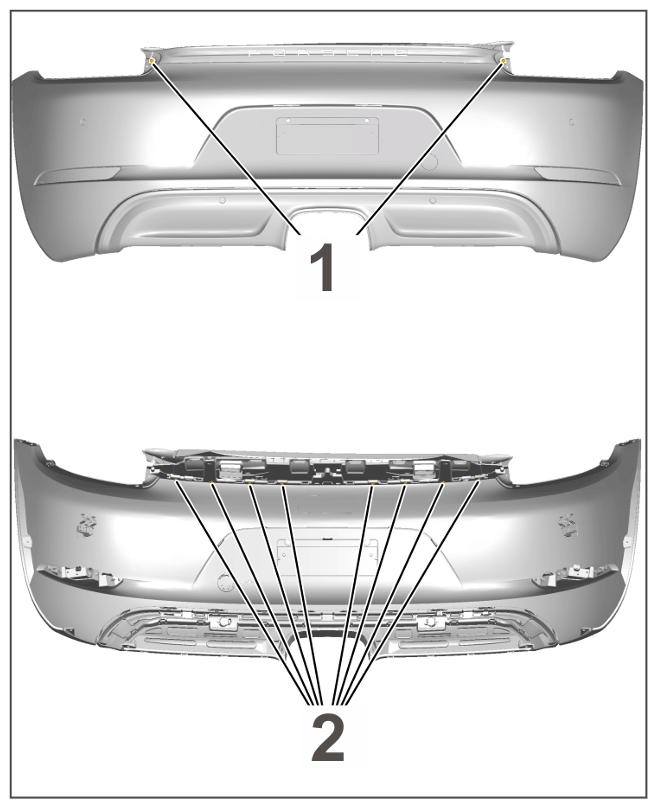

  3. Tighten fastening screws on the rear panel (logo) -1-  to > Tightening torque 2.4 N.m (1.8 ft lb.) + 10 % +/- 15 %  .
    G16223742Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  4. Tighten fastening screws on the cover -2-  to > Tightening torque 2.4 N.m (1.8 ft lb.) + 10 % - 15 %  .
    G16223743Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws
