Disassembling Rear Apron

  1. Unclip cover for towing lug.

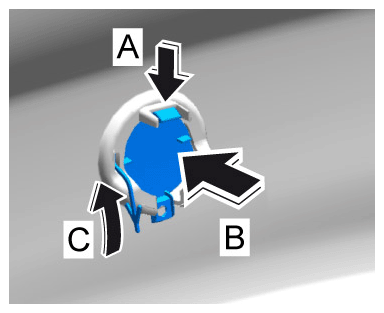

    G16223729Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover for towing lug

    1. 1.1 Release locking lug -arrow "A"-  .
    2. 1.2 Press out the cover -arrow "B"-  .
    3. 1.3 Unhook safety strap -arrow "C"-  .
