Home >> Porsche >> 2020 >> 718 Spyder >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> 63 Bumper -- 718 SPYDER >> WM, 635555 Replacing Rear Bumper >> Assembling Rear Apron

Assembling Rear Apron

  1. Install cover for towing lug.

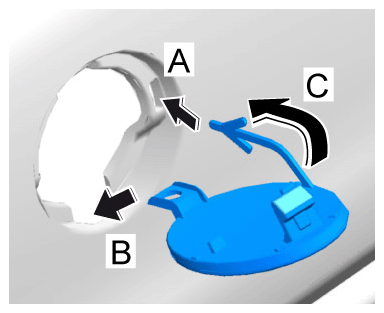

    G16223730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover for towing lug

    1. 1.1 Hook in safety strap -arrow "A"-  .
    2. 1.2 Fit the cover -arrow "B"-  .
    3. 1.3 Clip in the cover -arrow "C"-  .
