Technical Values

TIGHTENING TORQUE SPECIFICATION

Location	Type	Basic val...

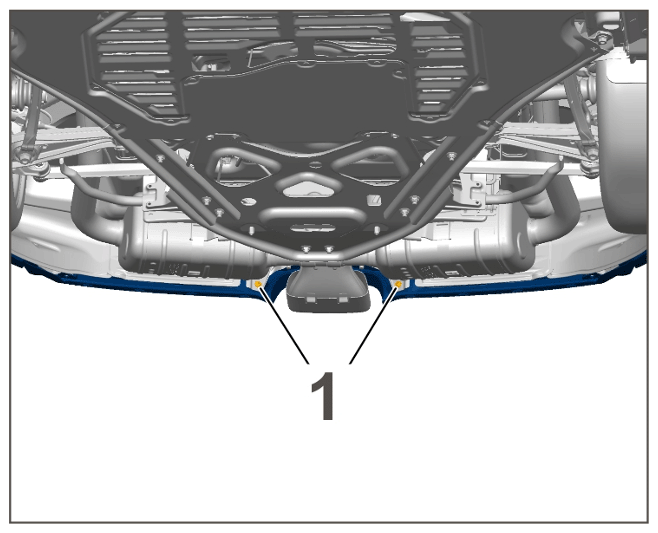

Fastening screws at bottom of rear apron	Tightening torque	3.2 N.m (2.4 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws at bottom

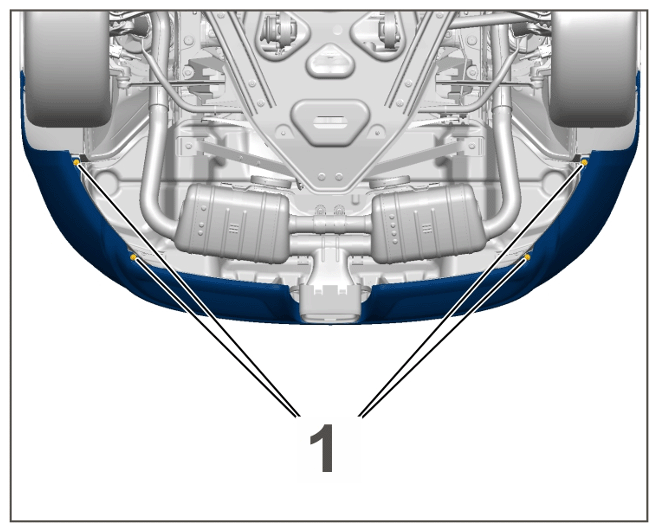

Fastening screws at bottom of rear bumper at bottom	Tightening torque	4.5 N.m (3.3 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower fastening screws at the centre

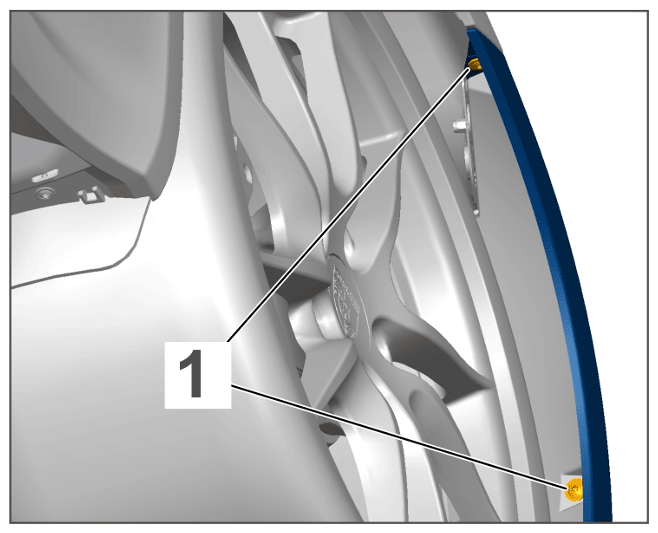

Fastening screws for rear bumper wheel house	Tightening torque	3.2 N.m (2.4 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws wheel house

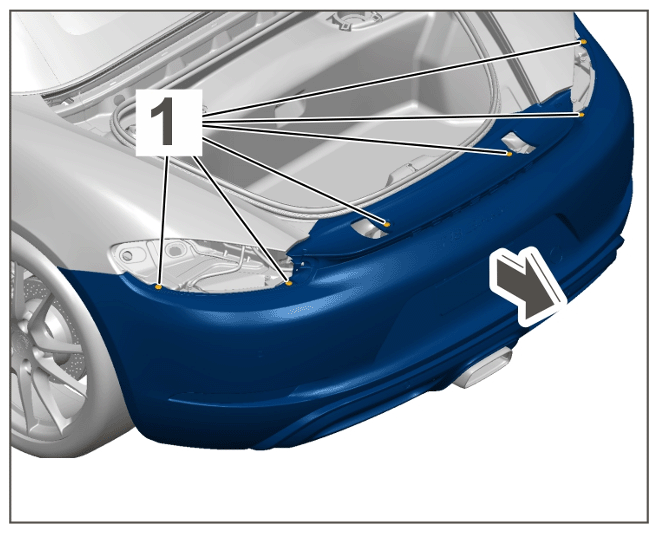

Fastening screws at top of rear bumper	Tightening torque	3.2 N.m (2.4 ft lb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws at top
